The Hydrema 920HM is equipped with an articulated chassis that delivers impressive stability and strength. The high-strength steel chassis construction combines lightweight with robustness, ensuring the machine remains stable during both travelling and tipping. With a swing angle of up to +/- 12 degrees, the 920HM can easily tackle challenging terrain, making it ideal for demanding applications.

This 18 ton dump truck is equipped with robust axles that are made to handle the most demanding terrains. The front axle has electro-hydraulic suspension and individual levelling for optimal positioning. The rear axle is a heavy-duty bogie axle with reduction gears in the hubs for a simple and maintenance-free design. Together, they deliver a reliable and strong axle solution for the 920HM that can handle even the roughest terrain with ease.

Powering the 920HM is the impressive Cummins B 6.7 liter 6-cylinder Stage 5 engine. This advanced engine is equipped with DOC, DPF and SCR catalytic converter with AdBlue addition to meet the strictest emission standards. With 24 valves, common-rail turbo diesel technology, intercooler and an electronic variable turbocharger, this engine delivers impressive performance. It produces a maximum power output of 231 kW (314 hp) at 2200 rpm and a maximum torque of 1288 Nm at 1500 rpm. This powerful engine drives the 920HM with ease and efficiency in the most demanding situations.

The Hydrema 920HM is equipped with impressive fuel capacity and efficiency. With a diesel tank capacity of 79.25 gallons and an AdBlue tank capacity of 8.1 gallons, this machine is ready to tackle even the longest workdays. Both tanks are intelligently integrated into the front chassis, making refuelling and fuel management easy and convenient.

The Hydrema 920HM delivers impressive braking and retarding capabilities, ensuring safety and control in all conditions. With a full 2-circuit braking system and oil bath disc brakes on all 6 wheels, reliable stopping power and performance is achieved. For added safety, there's a Fail Safe handbrake on the front axle. These brakes are not only highly effective, but also maintenance-free, saving time and costs. To improve vehicle performance and speed control, there is also a manually operated retarder that combines the engine brake and a hydraulic retarder. This advanced system provides a maximum retarder output of 300 kW or 405 hp, contributing to safe and precise braking of the Hydrema 920HM in a variety of conditions.

The Hydrema 920HM has an advanced hydraulic system with 5 pumps for precise control of brakes, stabilizer, differential lock, suspension, articulation, tipping, retarder and emergency steering. This ensures maximum performance and accuracy in every situation.

Pump 1: 48.9 gal/min constant flow pump for brakes, stabilizer, differential lock and suspension.
Pump 2: 51.5 gal/min variable pump for articulated steering.
Pump 3: 51.5 gal/min constant flow pump for tipping function and retarder.
Pump 4: 16.9 gal/min constant flow pump for additional retarder power.
Pump 5: 6.9 gal/min variable flow pump for emergency steering.

The 920HM is equipped with a ZF ERGOPOWER 6 WG-210 automatic transmission that offers 6 forward and 3 reverse gears. It has a 100% lock-up function in all gears and the option to manually activate the differential lock between the front and rear axles. This gives the driver full control of the vehicle and ensures optimal performance in different situations. With an impressive maximum speed of 31 mph in forward and 19 mph in reverse and a maximum traction of 223 KN, the Hydrema 920HM is ready to tackle any challenge with ease.

This dump truck is equipped with a servo-activated hydrostatic steering system that ensures exceptional precision and maneuverability. With a separate variable pump dedicated to the steering function, the operator can achieve a maximum steering angle of +/- 38°, making it easy to manoeuvre in even the most demanding terrain. The steering in the Hydrema 920HM is designed to deliver a smooth and responsive driving experience, making work more efficient and comfortable.

At the heart of the Hydrema 920HM you'll find a robust electrical system built for uninterrupted work. This reliable system is based on a standard 24V electrical system and is supported by a powerful 70 Amp. generator along with two 12V, 100Ah batteries.

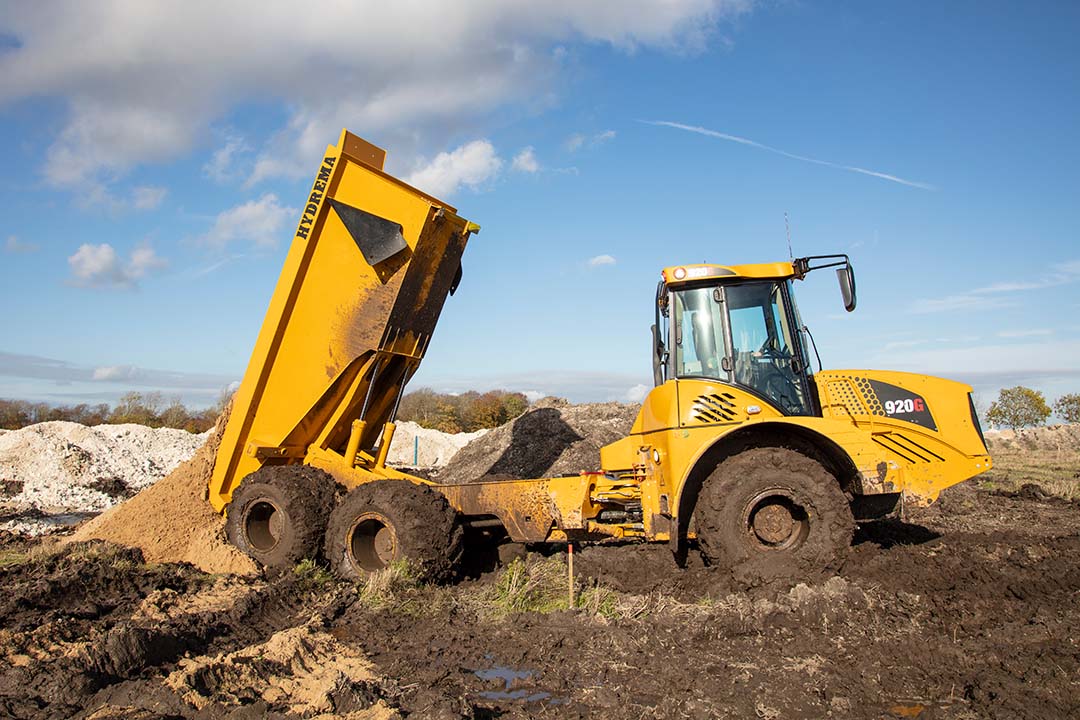

The 920HM dumper body is constructed with durable Hardox 450 high-strength steel, without side ribs, and provides maximum protection with double-acting tipping cylinders. Options such as exhaust heating and an automatic tailgate enhance convenience. Short tipping times of 7.5 seconds up and 5.5 seconds down at maximum engine speed and an impressive 70° tipping angle make loading and unloading fast and efficient.

Not only standard options are available with a dump body. We also offer two exciting MultiChassis variants with short or long wheelbase. These MultiChassis solutions are like a blank canvas waiting to be filled with customized solutions. Whether you need a water tank, a lime spreader, forestry equipment or a hook lift for container handling, you can customize your 920HM exactly to your needs. Maybe you want a flatbed for transporting tools, wood or heavy machinery? The choice is yours and the possibilities are endless!

Step into the spacious ROPS/FOPS cab of the Hydrema 920HM, where comfort and control go hand in hand. With heavy-duty viscose suspension, you'll experience minimal vibration while enjoying great views. The seat with air suspension, ventilation and longitudinal damping provides all-day comfort. You're in full control with an adjustable steering wheel and a multi joystick that controls hydraulics and transmission. And with automatic tipping and lowering of the body, we make it easy for you to get the job done.

In the cab of the 920HM, you can work in peace and quiet with a noise level of only 73 dB(A). While you enjoy the inner silence, the machine works efficiently outside with a sound level of 106 dB(A). We unite comfort and productivity so you can do your job with the perfect balance of performance and well-being.

We take safety seriously, and that's reflected in every detail of the Hydrema 920HM. With features like hoist assistance, which warns of unsafe tipping, and a rear view camera for improved visibility, we fulfil ISO 5006 requirements and give you the confidence to work safely and efficiently. Our brake indicator keeps an eye on the brakes and warns if there's a risk of overheating, so you can focus on your work without worry.
