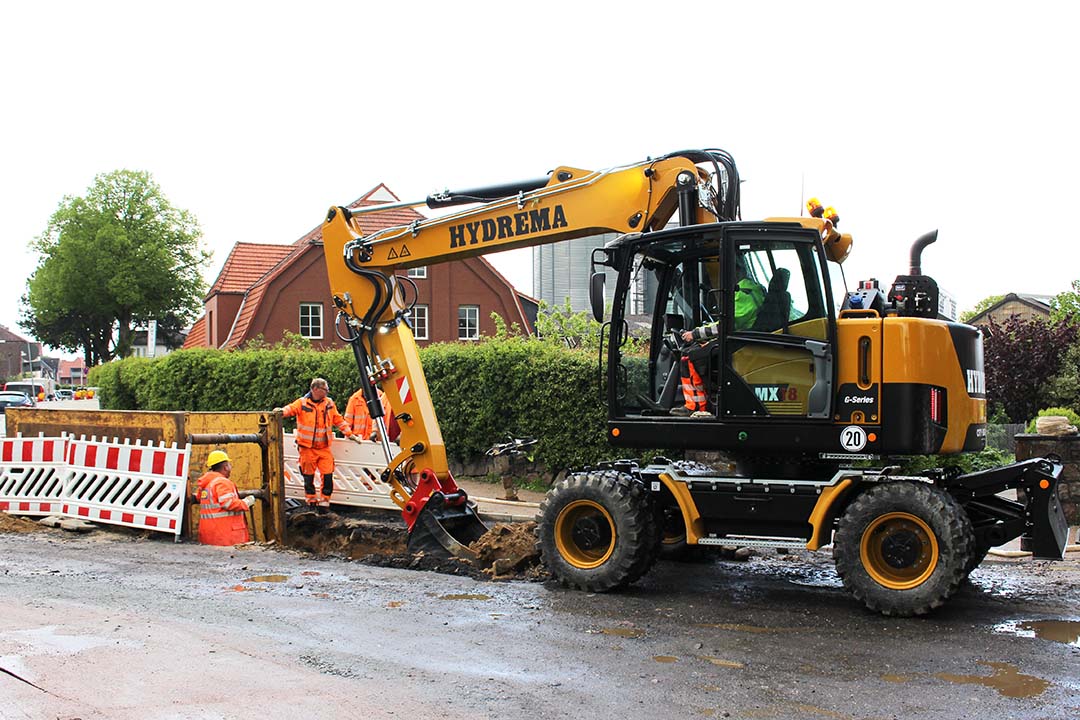

MX18G Rear Right Side View Loading Dump Truck MX18G Front Left Side View Excavating MX18G Rear Left Side View Lifting Heavy Block MX18G Rear View Transport Heavy Block In Traffic Narrow Street MX18G Rear View Transport Narrow Space MX18G Rear Left Side View Transporting Heavy Block MX18G Left Side View Excavating

MX18G

Excavator

Properties

  • Cummins B 4.5 L Stage 5 Engine
  • Large cab with excellent visibility
  • Highly customizable to your needs
  • Heavy-duty construction, built to last
  • Easily works in tight spaces, narrow streets or busy roads
  • Shortest rear end in its class, from only 5’9.63” ft in
  • Superior breakout force, engine power and digging forces

MXG SERIES

Hydrema's groundbreaking MXG series symbolizes a new generation in the earthmoving industry. These dynamic machines are masterfully crafted to combine strong performance with a compact and user-friendly design, making it an ideal choice for a wide range of applications - from urban confined spaces to busy construction sites. The MX18G, along with its siblings in the series - MX14G, MX16G, MX17G and MX20G - present a diversity of functionality that ensures there is a model for every specific job. Hydrema's commitment to the MXG series reflects their dedication to creating the highest quality machines that can be customized to meet the individual requirements of our customers' diverse projects.

MX18G

The Hydrema MX18G, a prominent member of Hydrema's revolutionary MXG range of wheeled excavators, represents an advanced fusion of power and compact dimensions. This wheeled excavator is built to outperform in efficiency, especially adapted for challenging tasks in tight and hectic jobsites. With the MX18G, Hydrema has set a high standard for making robust machines with an elegant design that guarantees high performance even in the most restrictive conditions. As an integral part of the MXG series, the MX18G illustrates a perfect harmony between size and strength, making it an excellent solution for a wide range of excavation tasks.

CUTTING-EDGE AND MIGHTY EXCAVATOR

The heart of the Hydremas MX18G is powered by a powerful Cummins B 4.5 L Stage 5 engine, which stands as a testament to exceptional strength and advanced engineering. This impressive engine is equipped with a 16-valve common-rail turbo diesel system that delivers an impressive 175 horsepower and 780 Nm of peak torque. The MX18G marks its dominance on the jobsite by combining superior power with outstanding efficiency, even in the most demanding working conditions. The machine's engine setup includes a large fuel tank and an AdBlue system, promoting economical fuel consumption and meeting strict environmental standards.

The MX18G also excels with its advanced hydrostatic transmission that guarantees constant all-wheel drive. This well-engineered transmission ensures a smooth driving experience and precise steering, thanks to an electronically controlled drive motor and a sophisticated two-speed soft-shift Power shift system. This system allows the driver to switch between manual and automatic gear settings, providing unrivalled control and adaptability in different terrain conditions. The MX18G's versatility allows it to adapt to both on-road and off-road conditions, ensuring a perfect balance between power and maneuverability.

EXCAVATOR

The MX18G is equipped with an innovative two-part boom, which is offered in varying lengths of 6’7’’, 8’2’’and 9’10’’, making it highly adaptable for various digging projects. Characterized by its ease of use and flexibility, the MX18G is designed with a sophisticated hydraulic quick-change system, complemented by the option to integrate an Engcon tilt rotator. This combination of features makes the MX18G a versatile and efficient excavator, perfectly suited for a wide range of tasks.

UNDERCARRIAGE

The Hydrema MX18G demonstrates outstanding adaptability with its six different undercarriage options, designed to meet the unique demands of varying terrain conditions.

  • Rear dozer blade (A1)
  • Front dozer blade (A1V)
  • Front/rear dozer blade (2xA1)
  • Front dozer bl./rear stabilizers (A3)
  • Front stabilizers/rear dozer bl. (A3V)
  • Front/rear stabilizers (A4)

These customized undercarriage options make the MX18G highly versatile, ready to meet the needs of any work situation. Regardless of the undercarriage configuration used, the MX18G improves work efficiency and increases operator comfort in a variety of working environments.

undercarriage for MX18G

AXLES

The MX18G wheeled excavator is equipped with high-performance ZF axles, which play a key role in its exceptional ability to perform in difficult conditions. A distinctive feature of the MX18G is its planetary reduction wheel hub, which provides increased torque and precise steering, making the machine particularly suitable for precise and challenging digging tasks.

In addition, each axle on the Hydremas MX18G is equipped with inbuilt brakes, enhancing the machine's impressive braking capacity during digging. The front axle is designed with a unique centre bolt and pendulum lock, which enables a pendulum angle of +/- 8º.

STEERING

The MX18G from Hydrema offers an advanced steering experience that combines hydraulic steering with the option of emergency steering. This ensures you are always in full control of the machine, even in unforeseen situations where maximum precision is required. To add even more to the user experience, joystick steering is also available as an option. With joystick steering, you get intuitive and responsive control at speeds up to 12 mph, providing a more relaxed and comfortable driving experience, especially during longer work periods.

HYDRAULIC SYSTEM

The MX18G from Hydrema is equipped with a state-of-the-art hydraulic system that includes a two-circuit Load Sensing system and a high-pressure hydrostatic bending system with separate pump for optimal performance. This system is enhanced with electronic power regulation and Mode Control, which allows switching between precision work and ECO Mode to save fuel. Up to three hydraulic circuits are available, two of which are standard and all of which are adjustable from the cab.

Oil quantity:

  • Pump 1: - Working hydraulics - 84 gpm
  • Pump 2: - Slew hydraulics - 23 gpm

System pressure:

  • Working hydraulics: - 5,076 PSI
  • Slew hydraulics: - 5,729 PSI
  • Hydraulic circuit 1, ZV1: - 8-53 gpm
  • Hydraulic circuit 2, ZV2: - 4-26 gpm
  • Hydraulic circuit 3, ZV3: - 13-53 gpm

ENGINE

Equipped with an advanced Cummins B 4.5 L Stage 5 engine, the MX18G from Hydrema combines power and eco-friendliness. This engine includes state-of-the-art technology such as DOC, DPF and an SCR catalyst with AdBlue addition. It delivers impressive performance with up to 175 hp (129 kW) and a maximum torque of 780 Nm. To support long-term and efficient operation, the MX18G is equipped with a 73.96 gallons fuel tank and a 8.3 gallon AdBlue tank, ideal for long working days without frequent refuelling stops.

DRIVING HYDRAULICS & TRANSMISSION

The MX18G from Hydrema ensures exceptional mobility with its hydrostatic propulsion and constant 4-wheel drive. Equipped with a variable electronically controlled drive motor and brake valve, it guarantees a smooth and controlled drive. With its 2-speed soft-shift Power shift transmission, suitable for both on- and off-road gears, the MX18G offers the choice between manual and automatic shifting, giving the operator maximum flexibility and comfort in all working conditions.

Road gear (mph): 21
Off-road gear (mph): 0-6
Creep gear (mph): 2.2
Max. traction (lpf): 24,945

Speeds are given for a standard machine with dozer blade and standard tire fitment. With additional weight such as supports, rotor tilt and heavy attachments or other equipment, the maximum speed may be lower.

ELECTRICAL SYSTEM

With its advanced 24V electrical system, the MX18G from Hydrema ensures trouble-free operation and long service life. The system includes a powerful 70 Amp. generator and two robust 12V, 100Ah batteries. The wiring is both robust and protected, with waterproof connectors for external use, guaranteeing flawless operation. Easy access to fuses and relays next to the cab through the service hatch makes maintenance and inspection simple. An emergency operation function ensures operation in the event of an electronics failure, and an automatic circuit breaker adds an extra layer of safety. The MX18G is designed to be a reliable and efficient work partner in all situations.

AUTOMATIC CIRCUIT BREAKER

The MX18G from Hydrema is equipped with an easy-to-use automatic circuit breaker. When the operator switches off the machine and leaves the cab, all electrical systems are automatically switched off, saving energy and increasing safety. The system is easily reactivated when the driver returns, thanks to sensors in the doors. With a built-in timer and shutdown process that can be controlled from the dashboard, this feature is both intuitive and convenient. Additionally, an emergency switch is located in the cab, providing an extra layer of security measures.

OPERATION

Operating Hydrema's MX18G is both simple and efficient thanks to its well-designed control system. Multi-function joysticks, including proportional servo functions, a roller and push buttons, provide precise control. Separate foot pedals for the two-part boom and supports/dozer blade increase operator comfort. The operator can easily adjust pressure and oil flow for the option hydraulics directly from the instrument panel, and further customization is possible with optional advanced joystick configurations. This intuitively designed control system makes the MX18G a pleasure to work with in all situations.

SLEW SYSTEM

The MX18G's innovative high-pressure hydrostatic slewing system significantly improves the machine's maneuverability. This system partially recycles the braking energy to the diesel engine, increasing operational efficiency. Equipped with an integrated mechanical slew brake and soft start function with angle sensors, the MX18G offers a smooth swing speed of 10.8 rpm and a powerful swing torque of 50 kNm, making it optimal for precision work.

BRAKES

The MX18G is equipped with a highly efficient braking system for increased safety and control. It has a two-wheel system with maintenance-free oil-immersed brakes on all wheels, ensuring stable and reliable breaking. With an integrated parking brake in the transmission and a standard automatic digging brake, the MX18G combines efficiency with ease of use, making it a safe choice for all types of jobs.

CAB

This wheeled excavator offers a spacious and comfortable ROPS cab, designed with operator comfort in mind. The cab features an efficient air conditioning system with seven adjustable air nozzles and an air-suspension seat to ensure comfortable working in all conditions. A large 10" display with touch controls and an armrest controller makes it easy to monitor and control the machine's functions. The cab is also equipped with a sliding window in the door and a two-piece windscreen, of which the upper part can be opened and the lower part completely removed, as well as a practical roof window for increased visibility. Comfort is further enhanced with an adjustable steering column and multi-adjustable armrest. Large rear-view mirrors with electronic adjustment and a reversing camera integrated into the display ensure a good overview. In addition, the cab offers practical storage space under and behind the seat, making the MX18G a functional and comfortable workplace.

SOUND LEVEL

With Hydrema's MX18G you get a remarkably quiet working experience. The cab sound level is pleasantly low at only 68 dB(A), while the exterior sound level remains moderate at 102 dB(A). This sonic refinement makes the MX18G a pleasant partner in the workplace, both for the operator and the surroundings.

Dimensions

  ft in
Width across:
Blade 8’4’’
Support, lowered 12’8’’
Tire 10.00-20 8’4’’
Tire 600/40-R22.5 8’3’’
Tire 650/45-R22.5 8’5’’
Tire 710/40-R22,5 8’11’’
Track width with standard tires 6’4’’
Wheelbase 8’6’’
Distance, pivot center to rear axle 3’11’’
Distance, pivot center to front axle 4’7’’
Clearance height, cab 10’3’’
Transport height 13’1’’
Length, road transport 21’4’’
Overhang, front (with 8’2’’ stick) 10’11’’
Rear distance, pivot center - counterweight 5’7’’
Swing radius, rear 6’0’’
Ground clearance, stabilizer 1’2’
Ground clearance, wheels, lower stabilizer 0’2’’
Ground clearance, blade 1’8’’
Ground clearance, wheels, lower blade 0’3’’
Overhang, blade 3’10’’
Overhang, stabilizer 3’8’’
Ground clearance, axles 1’2’’
Swing radius, front
with 6’7’’ dipper 5’8’’
with 8’2’’ dipper 6’9’’
with 9’10’’ dipper 7’11’’
Total length during transport, 8’2’’ dipper 29’11’’
Height of two-piece boom during shipping, 8’2’’ dipper 9’7’’
Center shift, two-piece boom 0’5’’
Outside turn radius 21’12’
Inside turn radius 11’10’’

Dimensions with standard tires 10.00-20.



MACHINE WEIGHT

Chassis lb
A1 - Blade 41,226
A3 - Blade + stabilizer 44,312
2 x A1 - Front and rear blade 44,092
A4 - Front and rear stabilizer 44,533

Weight stated with 441 lb quick hitch and 882 lb bucket.



WORKING AREA AND BREAKOUT FORCE

Length of dipper ft in 6’7’’ 8’2’’ 9’10’’
Strike height ft in 35’0’’ 36’8’’ 38’3’’
Lifting height ft in 31’6’’ 33’2’’ 34’9’’
Digging depth ft in 17’6’’ 19’20’’ 20’9’’
Range ft in 30’3’’ 31’11’ 33’6’’
Vertical digging depth ft in 13’3’’ 14’9’’ 16’4’’
Horizontal digging depth ft in 21’2’’ 21’10’’ 22’5’’
Lifting height ft in 23’4’’ 24’12’’ 26’7’’
Working depth ft in 19’1’’ 20’9’’ 22’5’’
Range  ft in 28’1’’ 29’9’’ 31’5’’
Bucket rotation angle º 175 175 175
Breakout force, directly mounted bucket
Breakout force, bucket (ISO) lbf 31013
Digging force (ISO) lbf 24945 21799 19327
Max. recommended bucket size
Standard bucket yd3 1.31
Max. recommended bucket size with rotor tilt
Standard bucket yd3 1.05

The working area is specified with Hydrema standard bucket and 1800 mm grab height.

THE DIFFERENCES BETWEEN THE MXG SERIES MODELS

MX14G

  • Smallest counterweight, which means it has the smallest rear swing radius
  • Available with 6’7’’ and 8’2’’ length dipper
  • Shortest outer boom at 9’6.17” ft in
  • The most compact model in the MXG series

MX16G

  • The "centre" model in the series
  • Has a larger drive motor than the MX14G
  • Available with 6’7’’, 8’2’’and 9’10’’ length dipper
  • Still low swing radius, but greater digging power

MX17G

  • A combination of the MX16G and MX18G
  • Has the same length outer boom as MX16G
  • Has the same counterweight as the MX18G
  • This makes it the MX with the greatest lifting power

MX18G

  • Has the longest outer boom
  • This also gives it the highest breaking and digging force
  • Less compact but more powerful than the other models in the series
  • Is the largest model in the MXG series

MX20G

  • This has the exact same features as an MX18G
  • The difference is that it comes with a dozer blade and supports as standard
  • It is therefore the heaviest in the series
  • Is an MX18G with dozer blade and supports as standard

HYDREMA MX18G: A BEACON OF VERSATILITY AND PERFORMANCE

This powerhouse of a wheeled excavator, the MX18G, and the rest of the MXG series represent a new era in wheeled excavators where power and flexibility go hand in hand. This model stands out with a design that makes it perfect for manoeuvring in tight urban environments and on compact construction sites. Powered by a powerful Cummins engine, the MX18G combines advanced hydraulics with an easy-to-use control system, ensuring both high performance and environmentally friendly operation.

The MX18G is equipped with a state-of-the-art transmission that delivers smooth gear changes and maximises power transfer, while its precise drive hydraulic system guarantees accuracy in every movement. The cab is a study in comfort and tranquillity, with an ergonomic design and advanced technology that ensures the driver remains relaxed and focused throughout the working day. With its many undercarriage options and powerful hydraulic system, the MX18G represents more than a wheeled excavator - it's an essential resource on any jobsite, bringing unrivalled efficiency and precision to all types of construction projects.

“

Great stability and good hydraulics. Definitely worth considering when buying a new machine

MX16G
Png Mark Hydrema Yellow

HYDREMA MX18G: A PIONEERING POWER IN EARTHMOVING

This wheeled excavator showcases high quality and outstanding performance, led by a potent engine with up to 175 hp and a maximum torque of 780 Nm, making it an ideal solution for even the most demanding applications.

The MX18G combines its powerful engine with superior fuel economy, contributing to significant savings in operating costs. Equipped with a state-of-the-art hydraulic system that delivers an impressive 407 l/min hydraulic flow, the MX18G easily handles a wide range of hydraulic tools, such as a hydraulic hammer and cutting attachments.

The machine is designed with advanced swing control and energy regeneration from the slew brake, ensuring smooth and precise steering. The cab is focused on operator comfort, making it possible to remain productive and effortless throughout long working days.

Safety is top-notch on the MX18G, with advanced cameras and a 360-degree surveillance system that provides comprehensive control of the workspace and significantly enhances safety.

The MX18G is exceptionally versatile and can be customized to meet the unique demands of different jobsites, from construction sites to agriculture.

Maintenance of the MX18G is designed to be uncomplicated and user-friendly, with easy access to all key service points, ensuring the machine is always ready for use and performing at its highest level.

The ultimate choice for those seeking a combination of raw power, precision and quality, the MX18G from Hydrema is an indispensable player on any jobsite, ready to meet and overcome any challenging project.

Define Your MX18G with Our Bespoke Color Solutions

Make a statement on every job site with the MX18G, available in any color you specify. From vivid shades to classic tones, your machine will truly be one of a kind. Our sales representatives are eager to discuss how we can tailor your machine to your exact specifications.

DSC 9402
Jcog0su4 Retush PE21 SCREEN
MX Orange1 PE21 Moretop PRESS
MX Grøn 4 PE21 PRESS
RED 20190315 102722 PE21
MX Hvid Venstre 45Gr Bag RETUSH PE21 PRESS

Hydrema Telematics

LATEST TECH AND DATA HANDLING

In a time when technology and data management are essential for efficient operations, Hydrema introduces its MX18G with advanced Hydrema Telematics technology. Hydrema's MX18G enters a new era with its advanced Hydrema Telematics technology, revolutionising the way wheeled excavators are operated. This innovative system transforms the MX18G into an intelligent work partner, optimising workflows and minimising downtime.

Hydrema Telematics in the MX18G is far more than standard GPS tracking; it's a comprehensive solution that offers in-depth analysis of machine performance and status. With a built-in GSM/GPS device, the MX18G continuously transmits data that provides access to vital information about the machine's operation, enabling accurate planning and proactive maintenance to avoid unforeseen interruptions.

This system provides the ability to fine-tune fuel consumption and schedule maintenance, significantly reducing operating costs. The data collected provides valuable insights for fleet management decision-making and project planning.

Hydrema Telematics' functionalities include comprehensive machine monitoring, real-time fault diagnostics, detailed fuel analysis and maintenance planning, all contributing to keeping the MX18G in optimal condition.

Through Hydrema Telematics, the MX18G becomes more than just a wheeled excavator; it becomes a crucial, intelligent partner that helps to ensure outstanding work performance. With Hydrema MX18G and Telematics technology, you're ready for a future of higher efficiency and reliability.

A NEW ERA IN WHEELED EXCAVATORS FROM HYDREMA

Hydraulics

HYDRAULICS

ADVANCED HYDRAULIC SYSTEM BOOSTS EFFICIENCY

This powerful wheeled excavator from Hydrema is equipped with an advanced hydraulic system that delivers a significant flow of 107.5 gallons per minute. This ensures the machine can operate a wide range of hydraulic tools with both power and finesse. Whatever the task at hand - whether it's using buckets, grapples or other attachments - the MX18G's hydraulic system delivers the strength and agility needed to get the job done with maximum efficiency.

Safety

SAFETY

GREATER SAFETY AND BETTER OVERVIEW

The Hydrema MX18G sets a high standard for safety with its range of advanced safety features. This model offers the option to integrate additional cameras and a comprehensive 360-degree surveillance system. These technologies significantly expand the operator's field of vision, which is essential for safe operation, especially in confined and busy work areas. With these safety measures, the MX18G is designed to ensure maximum protection and overview for the operator in all work situations.

Cab

Cab

USER-FRIENDLY CAB WITH HIGH-TECH CONTROLS

The MX18G cab is designed with operator comfort, functionality and safety in mind. The spacious and comfortable ROPS (Roll Over Protective Structure) cab is created to meet the needs of the operator. The cab is equipped with an air conditioning system that ensures comfortable working conditions, no matter the weather conditions. In addition, the advanced 10-inch touchscreen and customized control settings make operation intuitive and seamless, creating a pleasant working experience.

MX18G: HYDREMA'S MIGHTY CONTENDER

SUPERIOR SLEW SYSTEM

The MX18G's slewing system is a key feature that makes this wheeled excavator extremely maneuverable and versatile on the jobsite. It is designed to allow 360-degree rotation of the machine's upper body relative to its lower body, allowing the operator to turn the machine in different directions with ease. The hydrostatic slewing function is equipped with an energy-regenerating swing brake that ensures smooth and precise rotational man oeuvres, which is essential for tasks that require accuracy and efficiency.

VERSATILE CONFIGURATION FOR ALL TASKS

With its modular design, the MX18G stands as a masterpiece of versatility and customizability. This machine is made to satisfy even the most specific needs, allowing for customized configurations that perfectly fit any requirement. Whether it's the choice of undercarriage configurations, tire types or optional equipment such as the impressive Engcon rotor tilt, the MX18G always manages to adapt and solve a multitude of tasks and challenging work situations.

HASSLE-FREE MAINTENANCE AND SERVICE

The MX18G from Hydrema places great emphasis on hassle-free maintenance and service. Easy access to service points makes maintenance uncomplicated, and the machine can even be equipped with a centralized lubrication system that automatically supplies the necessary lubricants. For an even more efficient maintenance process, you can take advantage of Hydrema Telematics, which allows you to control and monitor your machine with ease. This ensures that the MX18G is always in optimal condition and ready to deliver top performance on the jobsite.

POWERFUL PERFORMANCE FOR ALL CHALLENGES

The MX18G features a powerful Cummins engine that delivers an impressive 175 horsepower and 780 Nm of torque. This engine is designed to tackle even the most demanding projects with ease. With a balance of raw power and economical fuel consumption, the engine ensures the MX18G delivers high performance while keeping running costs low, making it ideal for tackling challenging working conditions efficiently.
