926G

Backhoe Loader


Properties

  • Up to 280° working range
  • Powerful Cummins B-4.5 Stage 5 engine
  • Articulated steering for superior off-road performance
  • User-friendly and great operator comfort
  • Quiet and compact for city use
  • Outstanding visibility from the cab

900G SERIES

The 900G Series from Hydrema represents excellence in articulated backhoe loaders, setting new standards for performance, comfort and versatility in this category of machines. With up to 45 years of experience built in, these backhoe loaders are robust and user-friendly, offering exceptional power, stability and working speed that matches real loaders.


Hydrema 926G

Hydrema's 926G is a top-class articulated backhoe loader that combines strength, precision and comfort. Equipped with a powerful 147 hp Cummins engine and advanced hydraulics, it tackles both digging and loading tasks with ease. With its innovative design, including the Double Command feature, it offers unrivalled flexibility and ease of use. The robust construction and articulated chassis ensure optimal performance in all conditions, while the comfortable cabin guarantees a pleasant working day. Perfect for those who demand the best in machine technology and efficiency.


UNIFYING POWER AND VERSATILITY IN A SINGLE BACKHOE LOADER

Hydrema's 926G stands as the most powerful and bulky machine in the impressive 900G series. This powerful backhoe loader stands out with its unique combination of strength and versatility. With a robust 147 hp Cummins engine, it's designed to handle even the most demanding jobs with ease.

What makes the 926G unique is its innovative side shift on the excavator, which allows a working range of up to 280 degrees. This incredible flexibility allows the machine to work in tight spaces where traditional backhoe loaders would be limited by their smaller working area. The loader is a class of its own, with a performance that rivals that of a 10-ton loader. The wide range of motion makes the 926G an indispensable resource on any construction site where efficiency and versatility are key to success.

With the Hydrema 926G, you not only get a machine that can perform a wide range of tasks, but also a guarantee to work faster, smarter and more efficiently. Its size and power is unrivalled in the 900G series, making it the ultimate choice for those seeking the best in modern earthmoving equipment.

Chassis

The Hydrema 926G's chassis is engineered for strength and maneuverability. With an articulated, robotically welded design and advanced pendulum rod system, this chassis delivers exceptional traction and track alignment. Whatever the terrain - soft, steep or snowy - the 926G stands strong, ready to tackle any challenge with its robust and reliable foundation.


AXLES

The 926G is equipped with rigid, fixed axles, reinforced with hub reduction for durability and power. This backhoe loader has an automatic limited slip differential lock on the front axle and a 100% electro-hydraulic differential lock on the rear axle. These features contribute to outstanding stability and control, regardless of the surface, and ensure the 926G delivers consistently high performance even in the most demanding working conditions.


ENGINE

The engine in the Hydrema 926G is a powerful Cummins B-4.5 Stage 5 engine, producing 147 hp with an impressive 600 Nm of torque at 1500 rpm. This advanced engine, equipped with modern technologies such as Common-Rail Turbodiesel and electronic variable turbocharger, ensures high performance with low fuel consumption. The 926G's engine is designed to handle demanding tasks with ease, making it a reliable power source on any construction site.


FUEL

With the Hydrema 926G's fuel system, long-lasting and efficient operation is ensured. The machine has a spacious 40.9 gallon diesel tank located in the rear chassis and a 3.6 gallon AdBlue tank in the front, enabling long working periods without the need for frequent refuelling. This intelligent placement of the fuel tanks not only contributes to improved weight distribution, but also to higher overall efficiency and productivity in the workplace.


BRAKES

This backhoe loader is equipped with a highly efficient hydraulic servo system and a dual-circuit braking arrangement that ensures reliable and controlled braking in all conditions. The machine also has oil-immersed disc brakes on all wheels for additional safety and stability. An important safety feature is the electro-hydraulic "Failsafe" parking brake, which automatically activates the wet disc brakes on the front axles. This advanced braking system in the 926G guarantees maximum operator safety and efficient handling on the jobsite.


HYDRAULIC SYSTEM

The hydraulic system in the 926G has been carefully designed to optimize both power and control. With its electronically controlled Double Command and Flow Sharing technology, precise and efficient operation is ensured. The system, equipped with a high-performance pump that delivers up to 220 l/min at 2200 rpm and 240 bar pressure, allows the machine to perform even the most demanding tasks with great precision. This superior hydraulic capacity makes the 926G ideal for a multitude of applications where precise maneuvering is essential.


TRANSMISSION

The innovative transmission in the Hydrema 926G sets a new standard for agility and power in backhoe loaders. Its ZF WG115, 6-speed fully automatic "ERGO-POWER Soft-Shift" transmission is designed to deliver an effortless driving experience with its advanced, 100% electronic control. This technology ensures smooth gear changes without sacrificing traction, which is essential for precision work in demanding environments. With constant 4-wheel drive and a versatile range of gears, this transmission perfectly balances power and maneuverability, making the 926G an indispensable partner on any construction site.


STEERING

With its advanced steering system, the Hydrema 926G sets a new standard for precision and control. Its articulated design with an articulating pivot point and hydraulic stabilisers ensures that weight is automatically transferred between the wheels for optimal weight distribution and stability. This is complemented by an efficient hydrostatic steering system that utilizes Load Sensing and dual-acting cylinders with end brakes to provide an accurate and lightweight response. With an impressive articulated steering angle of +/- 35°, the 926G offers excellent maneuverability, which is essential for navigating complex work areas.


ELECTRICAL SYSTEM

The Hydrema 926G is equipped with a robust and reliable electrical system, designed to support the machine's many advanced features. The system includes a standard 24V setup with a powerful 70 Amp. generator and two 12V, 95Ah batteries, ensuring stable and continuous power supply to all the machine's systems.


CAB

The cab of the Hydrema 926G is a testament to comfort and functionality, designed to maximize operator productivity and well-being. This spacious ROPS/FOPS approved cab is manufactured with an advanced suspension system that ensures a comfortable and quiet workplace. With adjustable mechanical or air suspension seats, multi-adjustable armrests, and an adjustable steering wheel, the cab offers an ergonomic workspace customized to the individual operator. In addition, the cab is equipped with modern conveniences such as a refrigerator and remote-controlled lights, further enhancing ease of use and comfort during long working days.

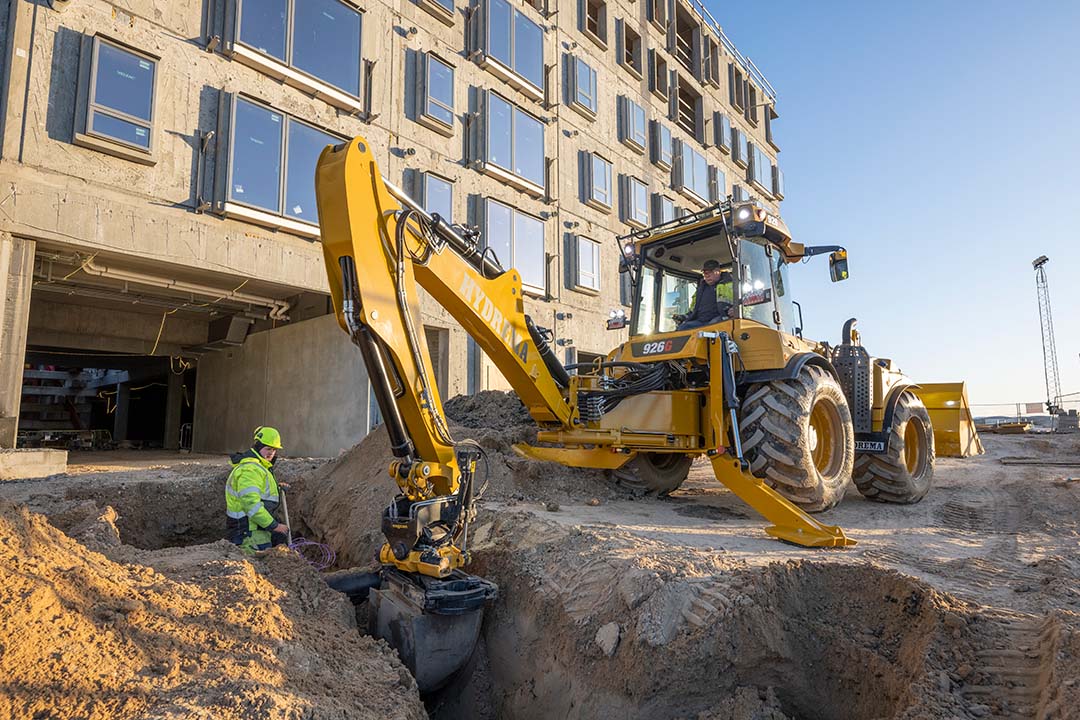

DOUBLE COMMAND

The Hydrema 926G's Double Command system revolutionizes operator control and flexibility. This innovative system allows control of the machine's hydraulic functions and wheel steering from joysticks located in the armrests, even when the seat is facing the opposite direction of travel. This feature is ideal for precise handling in complex tasks, significantly improving safety and efficiency during operation.


EXCAVATOR

The Hydrema 926G's excavator part combines maximum performance with precision. With a unique side shift and a 280° working range, it offers great flexibility, especially in tight spaces. High power at both low and high speed and strong breakout force make it ideal for complex digging tasks. Flow Sharing technology ensures a smooth digging cycle and fuel efficiency, and its robust construction promizes a long lifespan. The addition of an Engcon tilt rotator improves the excavator's flexibility, allowing 360° rotation and tilting, perfect for precise jobs in challenging areas.


LOADER

The 926G's loader section is an example of power and efficiency. This section is equipped with articulated steering with load transfer between the two chassis halves, ensuring the loader always follows the direction of travel for optimal tracking and minimized ground pressure. This combination gives the loader the performance and breakout force of a large wheel loader, making it ideal for both heavy lifting and precision work. Automatic parallel guidance and load stabilizer improve comfort, especially during road transport, while the compact design makes it easy to manoeuvre in tight spaces.


SOUND LEVEL

The Hydrema 926G is designed with a focus on low noise levels, which contributes to a better working environment. In the cab, the sound level stays at an impressive 66/67 dB(A), ensuring a comfortable and quiet experience for the operator. Outside, the sound level is limited to 99 dB(A), minimizing noise pollution in the work area.


EQUIPMENT

With a comprehensive range of standard equipment, the Hydrema 926G is designed to meet the most demanding working conditions with both efficiency and comfort. This model offers a wide range of customization options, making it ideal for diverse applications. Equipment ranges from advanced hydraulic systems to ergonomically designed cab features, ensuring both machine performance and operator comfort are top-notch.

Dimensions

    STANDARD TELESCOPE
Total weight w/ standard shovel lb 20944 21142
Width over std. tires  ft-in 7'77'' 7'77''
Track  ft-in 5'11'' 5'11''
Wheel base  ft-in 8'5'' 8'5''
Turning radius – outer shovel corner   ft-in 18'8'' 18'8''
Max. width ft-in 8'5'' 8'5''
Excavator
Slew angle o 280 280
Approach height, max.   ft-in 19'6'' 19'9''/22'5''
Lifting height – level base of bucket   ft-in 13'5'' 13'9''/16'80''
Bucket clearance  ft-in 3'11'' 3'11''
Excavating depth  ft-in 15'7'' 15'7''/19'6''
Reach ft-in 20'6'' 20'7''/24'4''
Distance – centre pivot to rear axle   ft-in 5'8'' 5'8''
Bucket rotation  o 190 170
Ground clearance – under machine  ft-in 1'4'' 1'4''
Transport height, min. ft-in 10'2'' 10'2''
Transport height, normal  ft-in 13'5'' 13'5''
Angle of departure  ° 20 20
Sideshift ft-in 5'3'' 5'3''
Beakout force, excav. cyl. - max. bucket (ISO 6015)  lbf 8630 8630
Breakout force, shove. cyl. - max. shovel (ISO 6015)  lbf 13192 13192
Lifting capacity – max. reach excl. appliances  lb 3307 3307
Stabilisers – supporting width  ft-in 12'10'' 12'10''
Stabilisers – max. alignment angle  o 11,5 11,5
Loader
Std. shovel volume, max. / with yd3/ft-in 2,2/8'4'' 2,2/8'4''
Lifting height – horizontal shovel  ft-in 11'7'' 11'7''
Clearance height – tipped shovel  ft-in 9'4'' 9'4''
Excavating depth – horizontal shovel  ft-in 0'6'' 0'6''
Reach from machine to tipped shovel  ft-in 2'5'' 2'5''
Reach at ground level  ft-in 4'11'' 4'11''
Emptying angle – max height  o 45 45
Back-tip angle – ground level  o 45 45
Dumping angle – ground level  o 100 100
Height, shovel pivot  ft-in 12'0'' 12'0''
Lifting capacity – max. height excl. appliances  lb 11023 11023
Breakout force – 1.4 m3 shovel (ISO 8313)  lbf 19102 19102

Data specified with std. tires.

THE DIFFERENCES BETWEEN THE 900G SERIES MODELS

The 906G and 908G from Hydrema are multi-purpose backhoe loaders ideal for a wide range of applications, particularly effective for excavation work. For more demanding and heavy-duty applications, the 926G and 928G offer larger size and additional strength, especially suitable for loading applications. Choose the model that best matches your specific needs!

906G

  • Has a working range of 280 degrees due to sideshift.
  • Smaller in size compared to the 926/928G.
  • Equipped with a 122 hp engine.
906

908G

  • Working range of 200 degrees.
  • Smaller in physical size than the 926G and 928G.
  • Equipped with a 122 hp engine.
  • Has more lifting power than the 906G and 926G.
908

926G

  • Working range of 280 degrees, made possible by sideshift.
  • Larger than the 906G and 908G.
  • Equipped with a more powerful 147 hp engine.

928G

  • Working range of 200 degrees.
  • Larger than the 906G and 908G.
  • Equipped with a powerful 147 hp engine.
  • Has a greater lifting force than the 906G and 926G.
928

HYDREMA 926G: A DOMINANT FORCE IN BACKHOES

Meet the Hydrema 926G, a pioneering force in articulated backhoe loaders that sets new standards for the industry. This model, with its robust 147 hp Cummins engine and advanced hydraulic system, is designed to meet the most demanding working conditions with unrivalled power and efficiency. With a working range of 280 degrees, thanks to its innovative side shift function, the 926G offers incredible flexibility that makes it suitable for a multitude of tasks - from complex excavation projects to precise loading work.

Every detail of the 926G has been carefully engineered with durability, ease of use and safety in mind. From the robust, articulated chassis that ensures optimal traction and manoeuvrability, to the comfortable and ergonomically designed cabin, where every feature is designed to improve the operator's working environment. Furthermore, with the option to add an Engcon tiltrotator, the 926G's excavator section becomes even more versatile, enabling it to perform tasks with unprecedented precision and efficiency.

It solves every task we have, big or small, under unreasonably tight conditions

926G 280 Degree Workarea
Png Mark Hydrema Yellow

HYDREMA 926G: 280° OPERATIONAL AREA

The Hydrema 926G backhoe loader stands out with its impressive excavator that uniquely combines high capacity and accuracy. The machine's standout feature is its hydraulic side shift and 280° working range, giving it a unique ability to reach and work efficiently in different areas without having to move frequently. This leads to significant time savings and increased efficiency on construction sites.

The excavator power of the 926G is remarkable as it delivers high performance under both low and high speed conditions. This, along with its strong breakout force, ensures tasks are completed efficiently and safely. Flow Sharing technology contributes to a smooth and consistent digging cycle, which also optimizes fuel consumption.

The design of the boom and digging arm of the 926G deserves special attention. By utilizing closed profiles made from high-strength steel, the machine achieves maximum strength and rigidity, giving it the ability to perform heavy lifting and demanding digging tasks with ease. The large plain bearings in all joints, reinforced with a double sealing system, extend service life and minimize operating costs.

The 926G's ability to manoeuvre and work in complex environments, combined with its powerful performance and ease of use, makes it an indispensable player in modern construction. With this model, operators get a backhoe loader that not only meets the stringent demands for precision and efficiency in today's construction industry, but also improves work efficiency with its advanced side shift function and wide working range.

Ultimately, the Hydrema 926G offers an optimal balance between flexibility, strength and economic efficiency, making it an excellent solution for a wide range of construction applications.

Hydrema Telematics

SHAPING THE FUTURE OF MACHINE CONTROL

The Hydrema 926G comes with the groundbreaking Hydrema Telematics technology, an advanced solution that transforms machine control and monitoring. This intelligent system integration enables users to stay up-to-date with the condition and performance of their machine in real-time.

With Hydrema Telematics, each 926G machine is equipped with a GSM/GPS device that continuously sends important data to a central server. Operators and fleet managers can easily access vital information such as machine type, serial number, geographical location, operating hours, battery status, distance travelled, as well as alarm and fault codes. This information is available via the Hydrema Telematics portal or a dedicated app, ensuring simple and convenient access.

By using Hydrema Telematics, users can plan maintenance more efficiently, identify and resolve issues faster, and optimise machine usage to maximise productivity. This kind of smart management and data analysis is essential for minimising downtime and costs while maintaining the highest levels of performance and safety.

Hydrema Telematics in the 926G is more than just a technological innovation; it is an integral part of Hydrema's commitment to offering customers the most advanced and user-friendly solutions on the market. With this technology, operators and businesses gain an invaluable resource that ensures their machines are always in top shape and ready to tackle any challenge.

HYDREMA 926G: MIGHT AND ACCURACY IN EARTHMOVING

Double Command

DOUBLE COMMAND SYSTEM

CONTROL AND FLEXIBILITY

The Hydrema 926G takes machine operation to a new level with its Double Command System. This system gives operators unrivalled flexibility and control by allowing control of the machine's wheels and all hydraulic functions from two joysticks in the armrests. With the ability to operate the machine even when the operator's seat is facing the opposite direction of travel, the Double Command System offers unique maneuverability and efficiency. This functionality is particularly useful in complex or confined work areas where precision and versatility are key to a successful operation.

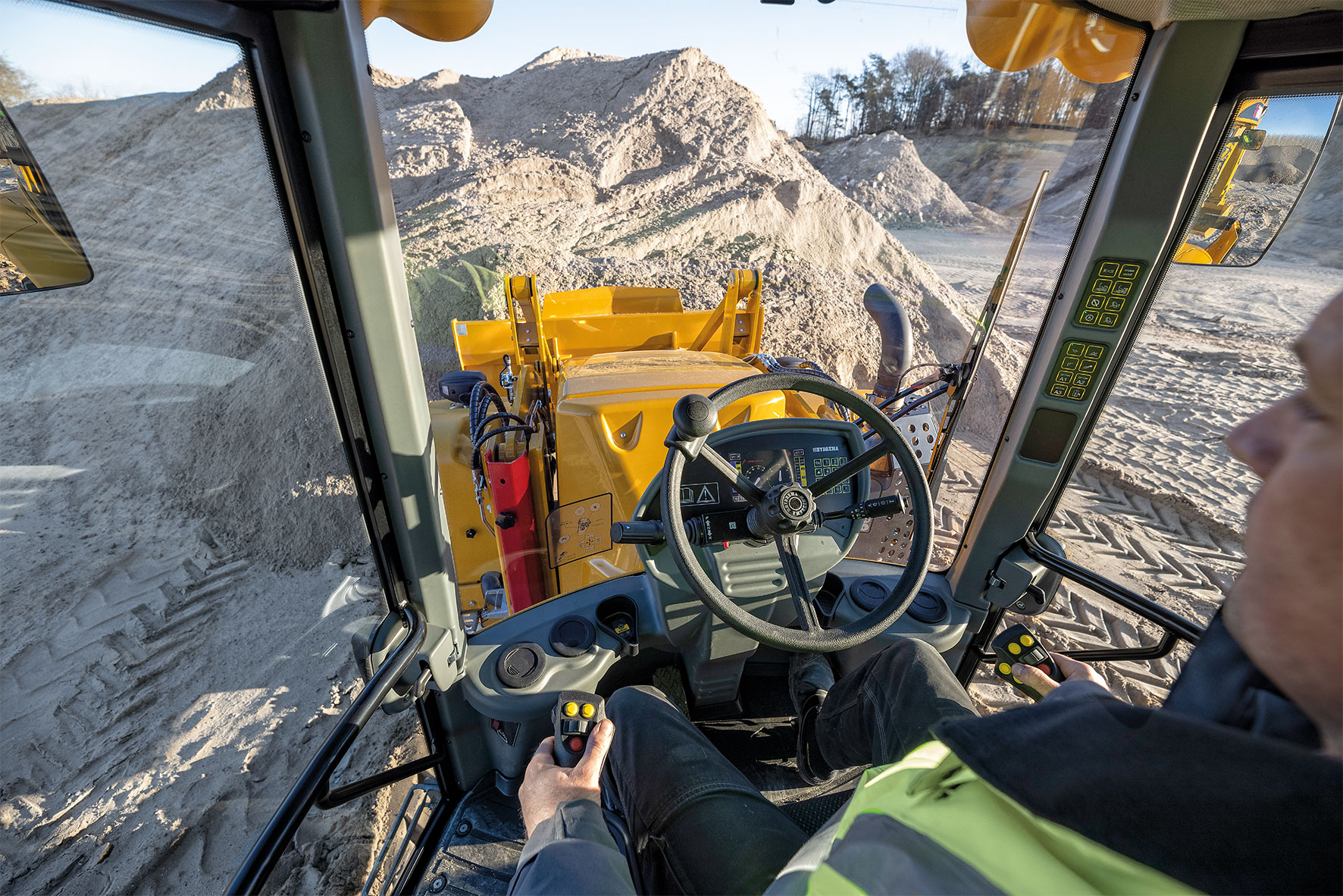

Cab

THE CAB

LUXURY AND FUNCTIONALITY

The Hydrema 926G's cab stands out with its sophisticated spring-suspended construction. This 4-point system, equipped with four spring units, parallel linkage and roll stabilisers, effectively minimizes movement from the axles and chassis, significantly reducing noise levels inside the cab. This advanced suspension is particularly noticeable during fast off-road and on-road driving, where the effect of the 4-point suspension significantly improves comfort.

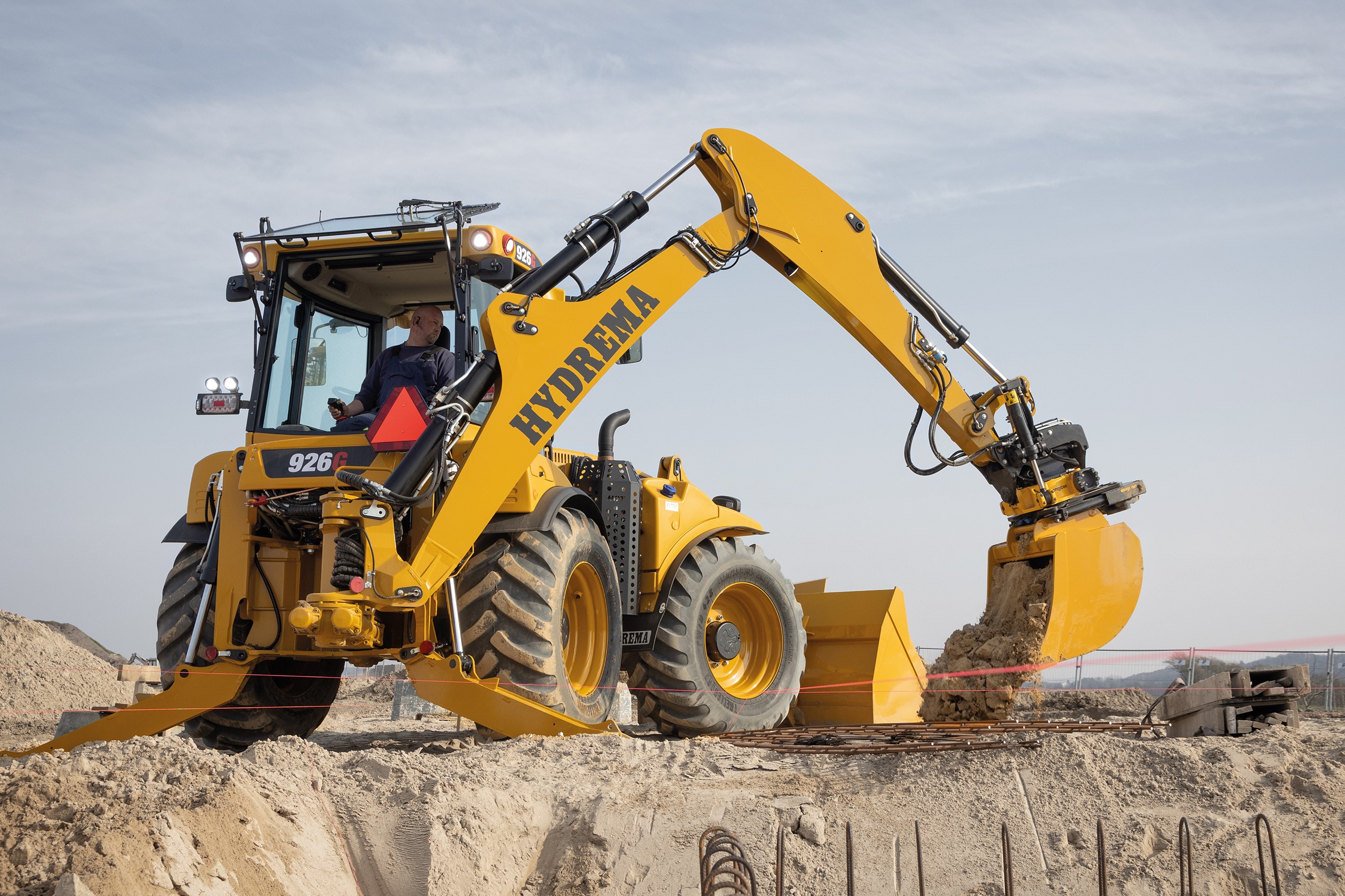

Tiltrotator

ROTORTILT

ADDING FLEXIBILITY AND PRECISION

The addition of a tilt rotator to the Hydrema 926G takes its already impressive capabilities to a new level of versatility and accuracy. With an Engcon tilt rotator, the 926G's excavator arm becomes highly maneuverable, able to rotate 360 degrees and tilt, allowing the operator to perform precise tasks from almost any angle. This is a crucial improvement for working in confined or complex areas where conventional digging movements are not sufficient. With this addition, the 926G becomes even more efficient in tasks such as precision excavation, pipe and cable work and landscaping.

AN ENERGETIC POWERHOUSE IN MODERN EARTHMOVING

SAFETY IN FOCUS

This backhoe loader is equipped with a range of safety features that ensure the protection of both the operator and the jobsite. With a ROPS/FOPS approved cab, robust construction and an advanced braking system with electro-hydraulic "Failsafe" parking brake, the 926G offers maximum safety in all operating conditions. In addition, the machine's advanced hydraulic system and precision controls are designed to minimize the risk of errors and unforeseen situations.

THE 926G'S CONTRIBUTION TO SUSTAINABILITY

The machine is equipped with an advanced Cummins B-4.5 Stage 5 engine that complies with strict emission standards, contributing to a more environmentally friendly workplace. Furthermore, its advanced technologies, such as Flow Sharing and efficient fuel management, optimize fuel consumption, resulting in lower emissions of harmful substances. This combination of powerful performance and reduced environmental impact makes the 926G an ideal choice for projects that prioritize sustainability and environmental awareness.

THE KEY TO THE 926G'S PERFORMANCE

The Hydrema 926G's hydraulic system is a key factor in its superior performance and efficiency. Equipped with an advanced Load Sensing system and a variable pump that can deliver up to 220 l/min at 2200 rpm and 240 bar pressure, the 926G ensures precise control and powerful performance. This sophisticated hydraulic system is key to the 926G's versatility and enables it to handle a wide range of applications, from precision digging to heavy-duty lifting.
