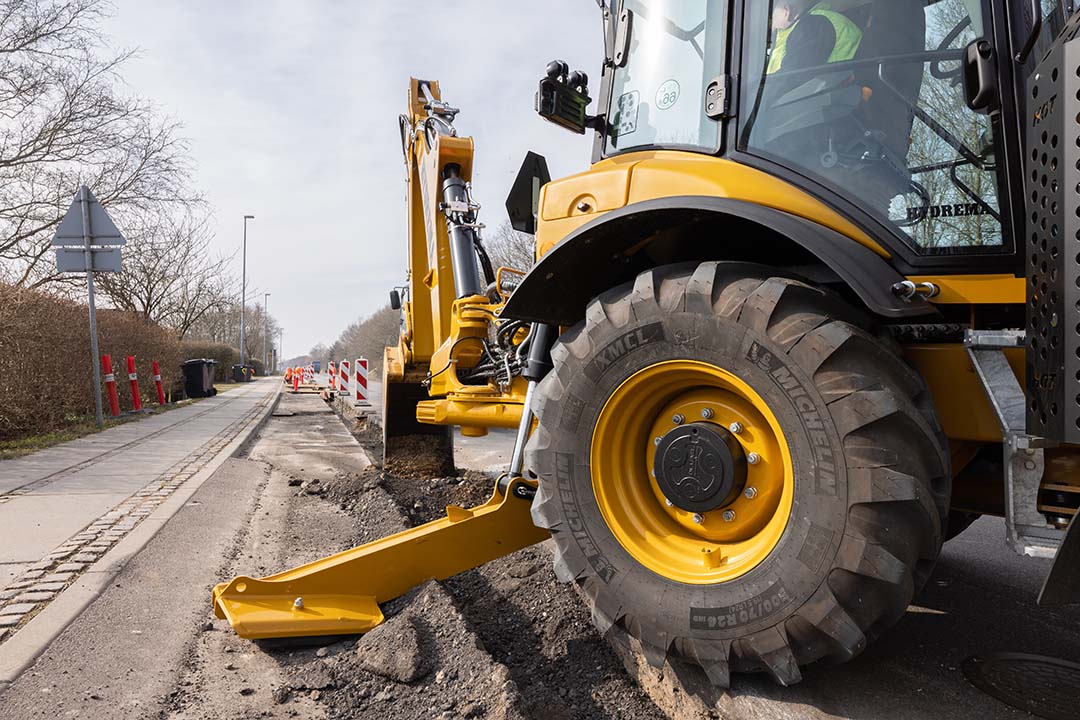

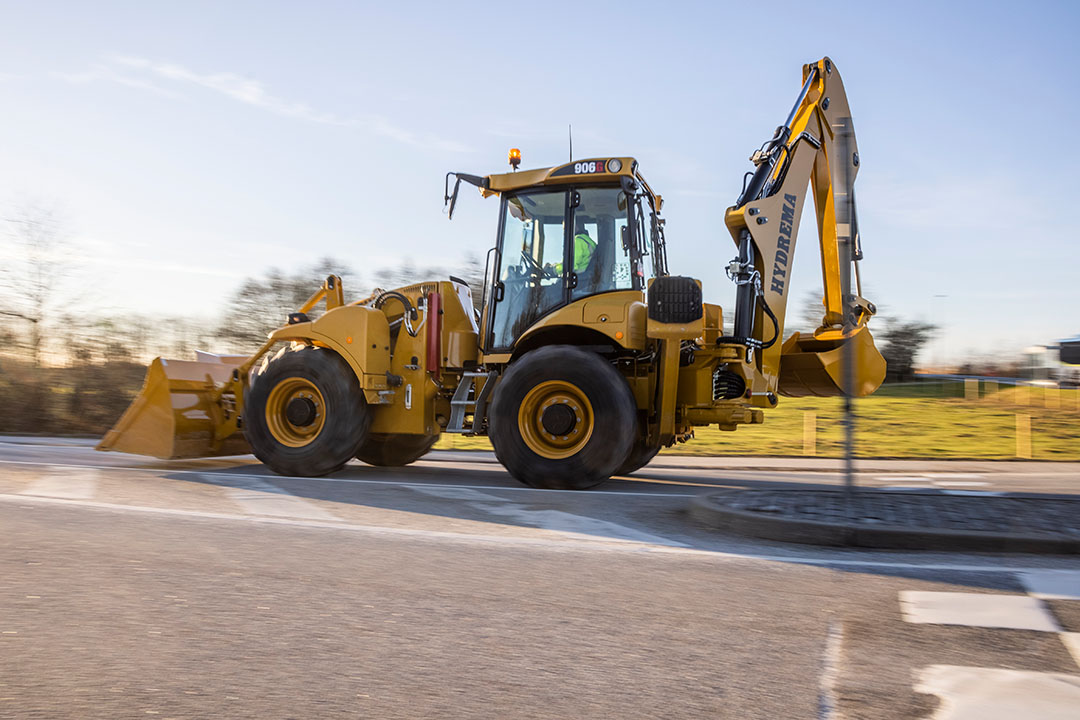

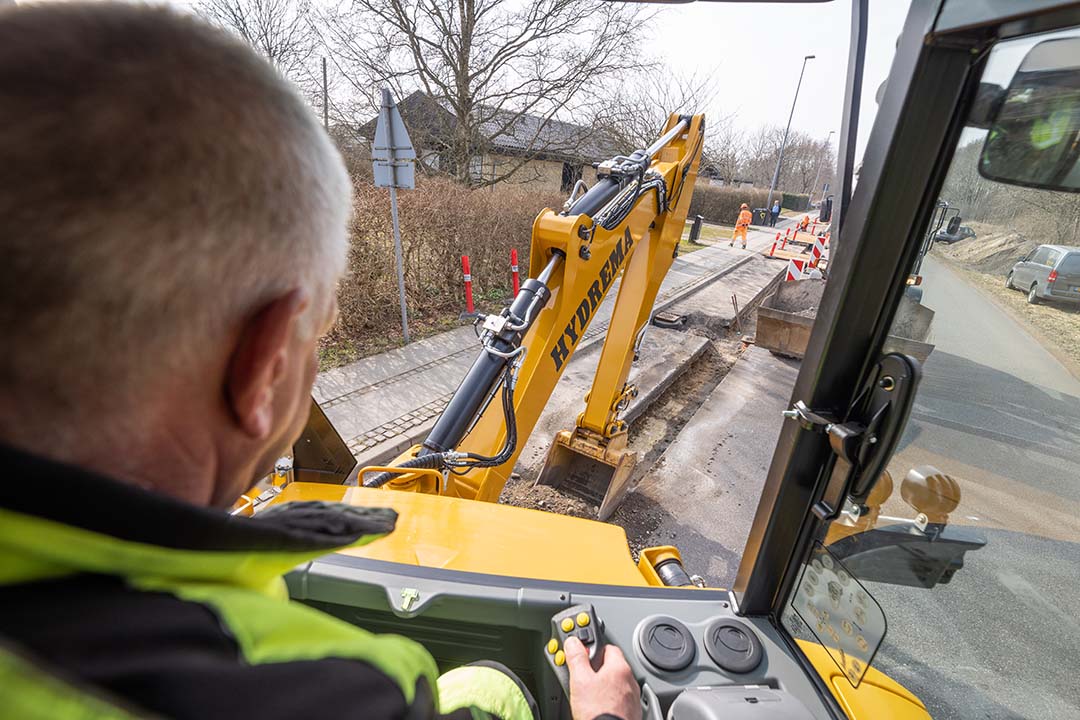

906G Loading From Pile Night 906G Rear Details 906G Excavating Road Close Up 2 906G Transport 2 906G Operator View 906G Loading From Pile

906G

Backhoe Loader


Properties

  • Up to 280° working range
  • Articulated steering for superior off-road capabilities
  • Easy to use and great operator comfort
  • Quiet and compact for city use
  • Powerful Cummins B-4.5 Stage 5 engine
  • Outstanding visibility from the cab

900G SERIES

The Hydrema 900G series represents the pinnacle of articulated backhoe loaders with excellent maneuverability and ease of use. The advanced articulated steering system and Double Command System ensure precise control of both loader and digger. The 280-degree working range of the digger makes it ideal for a wide range of tasks. With a high level of equipment and first-class comfort, the series is designed to meet every customer's needs.


Hydrema 906G

The Hydrema 906G is part of Hydrema's 900G backhoe loader series and is the smallest and most compact model in the range. This backhoe loader is designed to meet the highest standards in versatility and performance. The 906G can perform a wide range of tasks with high efficiency and minimal fuel consumption, even in the most challenging conditions. With Hydrema's over 45 years of experience in the development of articulated backhoe loaders, this machine offers a combination of power, stability and working speed on par with a real loader.


HIGH-PERFORMANCE AND STATE-OF-THE-ART TRANSMISSION

The Hydrema 906G is equipped with a powerful Cummins B-4.5 Stage 5 engine that combines advanced technology with robust performance. This 4.5-litre, 16-valve Common-Rail turbodiesel with electronic variable turbocharger is optimized to work hard and efficiently, ensured by a DOC, DPF and SCR catalyst with AdBlue addition. It can even run on biodiesel (HVO), making it a more sustainable option. With a maximum torque of 470 Nm at just 1500 rpm, the engine is designed to deliver optimal power at lower revs, reducing fuel consumption.

The transmission in the 906G is a fully automatic, electronically controlled gearbox from DANA, which provides 6 forward and 3 reverse gears. This transmission includes a torque amplifier and constant 4-wheel drive, ensuring smooth and effortless shifting between gears without compromising traction. This combination of an efficient engine and an advanced transmission ensures the 906G can handle even the most demanding tasks with ease and reliability.

Chassis

The Hydrema 906G's chassis is built for strength and maneuverability, with an articulated design and dual hydraulic stabilisers. This ensures optimal balance and control on uneven terrain. The robust, robotically welded steel structure guarantees long durability and minimal maintenance, making the 906G a reliable and efficient partner on the jobsite.


AXLES

The Hydrema 906G is equipped with heavy-duty axles, designed to ensure durability and optimal performance in all working conditions. These strong hub-reduction axles are built to withstand the stresses and challenges found on construction sites. With an automatic limited slip differential lock in the front axle and a 100% electro-hydraulic differential lock in the rear axle, the 906G guarantees exceptional traction and stability.


ENGINE

The 906G is equipped with a powerful Cummins B-4.5 Stage 5 engine that delivers reliable performance and efficiency. This 4.5-litre turbodiesel engine with Common-Rail technology and electronic variable turbocharger is optimized to deliver maximum power while maintaining low fuel consumption. With features such as DOC, DPF and SCR catalysts that support AdBlue addition, this engine not only ensures strong performance but also reduced emissions, making the 906G an environmentally friendly choice in its class.


FUEL

The backhoe loader is designed with efficient fuel economy in mind. It is equipped with a large 40.9 gallon fuel tank that integrates seamlessly into the rear chassis and a separate 3.6 gallon AdBlue tank located in the front chassis. This configuration ensures the 906G can operate for longer periods without frequent refills, maximizing productivity on jobsites. The advanced engine and optimized hydraulic system work together to reduce overall fuel consumption, making the 906G both economical and environmentally friendly to operate.


BRAKES

To ensure maximum safety and control, the Hydrema 906G is equipped with an advanced braking system. This includes a dual-circuit hydraulic servo system and oil-immersed disc brakes on all wheels, ensuring reliable braking power in a variety of working conditions. The machine's electro-hydraulic "Failsafe" parking brake, which activates the disc brakes on the front axles, provides additional safety. This efficient braking system is a key factor in the 906G's safe handling and reliable performance on the jobsite.


HYDRAULIC SYSTEM

The advanced hydraulic system of the Hydrema 906G plays a key role in its superior performance and functionality. Equipped with an electronically controlled Double Command System, which includes Flow Sharing and Mode Control, this system provides precise and efficient control of the machine's various functions. The even distribution of hydraulic flow ensures an optimal balance between power and efficiency while reducing fuel consumption. With the capacity to generate up to 165 l/min at 2200 rpm and 240 bar pressure, the 906G handles even the most demanding tasks with ease, making it an ideal machine for a wide range of construction projects.


TRANSMISSION

The Hydrema 906G stands out with its advanced transmission, which contributes to the machine's impressive performance and ease of use. This backhoe loader is equipped with a DANA 6/3-speed fully automatic, electronically controlled transmission that ensures smooth and efficient power transfer. With features such as 'Double Kick Down' and torque converter with torque increase, the system offers six forward gears and three reverse gears while maintaining constant 4-wheel drive. This high-tech transmission not only ensures a high level of control and comfort while travelling, but also contributes to the overall efficiency and reliability of the machine, making the 906G ideal for a variety of applications and terrain conditions.


STEERING

The 906G emphasizes its agility with an advanced and precise steering system. This system consists of hydrostatic steering with Load Sensing and a +/- 35° articulated steering angle, ensuring exceptional maneuverability. The articulated steering system improves stability and control while working, making the 906G ideal for working in both spacious and confined environments.


ELECTRICAL SYSTEM

At the heart of the Hydrema 906G is a reliable electrical system that powers the machine's advanced features. With a standard 24V system and a powerful 70 Amp. generator, this backhoe loader is always ready for action. Two 12V, 95Ah batteries ensure reliable power supply, making the 906G a dependable machine that can tackle even the most demanding tasks with ease. This electrical system is key to the machine's reliability and efficiency and is designed to fulfil the high demands of the construction industry.


CAB

The cab of the Hydrema 906G is an oasis of comfort and functionality. It has been carefully designed with the operator's well-being in mind, making long working days a pleasant experience. The cab is equipped with multi-adjustable armrests, a refrigerator and customizable joysticks. The operator also has remote lighting control that adds convenience to work, especially at dusk or at night. This cab is the perfect place for the operator to control the machine with ease and comfort, contributing to increased productivity on the jobsite.


DOUBLE COMMAND

In the Hydrema 906G, the unique Double Command System is an impressive feature that increases the machine's flexibility and ease of use. With this system, both wheel steering and all hydraulic functions can be operated from the two joysticks in the armrests. This means that the operator can manoeuvre the machine with ease, regardless of whether the driver's seat is facing one direction or the other. This feature increases the versatility of the machine and enables tasks to be completed with precision and efficiency, which is essential on a busy construction site.


EXCAVATOR

The excavator on the Hydrema 906G is a powerful and precise component that contributes to the machine's versatility and efficiency on the jobsite. With hydraulic side shift and an impressive 280-degree working range, this excavator is capable of handling a wide range of tasks with ease and precision. Whether digging, loading or moving materials, the 906G delivers impressive power and performance at both low and high speeds. The Flow Sharing feature ensures a smooth digging cycle and contributes to fuel savings.


LOADER

The loader on the 906G is an impressive component that combines power, stability and working speed on par with a real wheel loader. With articulated steering with load transfer between the two chassis halves, the loader always follows the direction of travel, ensuring optimal tracking and minimizing ground pressure. This loader delivers impressive performance with breakout force and lifting capacity, making it suitable for various tasks on the construction site. The agile loader features automatic parallel guidance and Z-kinematics, making it easy to fill the front shovel in all conditions. With a standard load stabilizer and pivot steering for easy load positioning, the 906G loader is a reliable and efficient partner on the jobsite.


SOUND LEVEL

The sound level of the Hydrema 906G is remarkably low and contributes to a comfortable working environment for the operator. Inside the cab, the sound level is measured at only 66/67 dB(A), while outside it is 99/99 dB(A). This quiet design ensures that the operator can work comfortably, even during extended work periods, while minimizing noise pollution on the construction site.


EQUIPMENT

The 906G comes standard with an impressive level of features and equipment. In addition to the basic features, it also has a wide range of options for additional equipment that can be customized to individual needs. This allows operators to customize their machine precisely to the specific tasks they face on the jobsite. The machine's modular design means that even extensive options, such as an alternative stabilizer arrangement, can be easily installed.

Dimensions

    STANDARD TELESCOPE
Total weight w/ standard shovel lb 20282 20723
Width over std. tires  ft-in 7'77'' 7'77''
Track  ft-in 5'11'' 5'11''
Wheel base  ft-in 8'5'' 8'5''
Turning radius – outer shovel corner   ft-in 18'8'' 18'8''
Max. width ft-in 7'10'' 7'10''
Excavator
Slew angle o 280 280
Approach height, max.   ft-in 20'1'' 20'4''/23'1''
Lifting height – level base of bucket   ft-in 13'12'' 13'11''/17'0''
Bucket clearance  ft-in 4'3'' 4'3''
Excavating depth  ft-in 15'9'' 15'7''/19'7''
Reach ft-in 20'1'' 21'4''
Distance – centre pivot to rear axle   ft-in 5'8'' 5'5''
Bucket rotation  o 190 170
Ground clearance – under machine  ft-in 1'3'' 1'3''
Transport height, min. ft-in 9'9'' 9'9''
Transport height, normal  ft-in 13'5'' 13'5''
Angle of departure  ° 20 20
Sideshift ft-in 4'11'' 4'11''
Beakout force, excav. cyl. - max. bucket (ISO 6015)  lbf 8450 8450
Breakout force, shove. cyl. - max. shovel (ISO 6015)  lbf 12900 12900
Lifting capacity – max. reach excl. appliances  lb 3197 3197
Stabilisers – supporting width  ft-in 12'6'' 12'6''
Stabilisers – max. alignment angle  o 11,5 11,5
Loader
Std. shovel volume, max. / with yd3/ft-in 1,8/7'10'' 1,8/7'10''
Lifting height – horizontal shovel  ft-in 11'4'' 11'4''
Clearance height – tipped shovel  ft-in 9'5'' 9'5''
Excavating depth – horizontal shovel  ft-in 0'7'' 0'7''
Reach from machine to tipped shovel  ft-in 2'2'' 2'2''
Reach at ground level  ft-in 4'9'' 4'9''
Emptying angle – max height  o 45 45
Back-tip angle – ground level  o 45 45
Dumping angle – ground level  o 100 100
Height, shovel pivot  ft-in 12'0'' 12'0''
Lifting capacity – max. height excl. appliances  lb 9921 9921
Breakout force – 1.4 m3 shovel (ISO 8313)  lbf 16405 16405

Data specified with std. tires.

THE DIFFERENCES BETWEEN THE 900G SERIES MODELS

Overall, the 906G and 908G are versatile backhoe loaders that can tackle most tasks and are perfect for digging. The 926G and 928G are larger versions with extra power, ideal for demanding applications and loading work. Choose the one that best suits your needs and tasks!

906G

  • 280 degrees working range thanks to sideshift.
  • Physically smaller than the 926G/928G.
  • Comes with 122 hp engine.

908G

  • Working range of 200 degrees.
  • Physically smaller than 926G/928G.
  • Comes with 122 hp engine.
  • Has greater lifting power than 906G/926G.
908

926G

  • Working range of 280 degrees thanks to sideshift.
  • Physically larger than the 906G/908G.
  • Comes with a powerful 147 hp engine.
926

928G

  • Arbejdsområde på 200 grader.
  • Fysisk større end 906G/908G.
  • Leveres med en kraftig 147 hk motor.
  • Har større løftekraft end 906G/926G.
928

EXPLORE THE ADVANTAGES OF THE 906G BACKHOE LOADER

The Hydrema 906G backhoe loader is a powerhouse of versatility and strength, built on 45 years of innovation in machine design. With its robust Cummins engine and advanced transmission, it delivers exceptional performance across a wide range of construction applications, making it essential for efficient jobsites.

The 906G emphasises comfort with a quiet, ergonomic cab and an intuitive Double Command System for simple operation. The machine's durability and low maintenance needs guarantee long-term reliability and reduced cost of ownership. Adapted for varying applications, the 906G is the ideal solution for contractors who value power, precision and economy.

It solves every task we have, big or small, under unreasonably tight conditions

906G 280 Degree Workarea
Png Mark Hydrema Yellow

HYDREMA 906G: VERSATILE 280° WORKING SCOPE

The Hydrema 906G backhoe loader is equipped with a flexible excavator that stands out with its unique combination of capacity and precision. One of the most striking advantages of the excavator is its hydraulic side shift, which enables the impressive 280° working range. This allows the machine to reach and work in areas that would normally require multiple position changes of the machine, saving time and significantly increasing efficiency on the jobsite.

The excavator's power is remarkable, with the ability to deliver high performance at both low and high speeds. This, combined with convincing braking power, ensures that tasks are completed both efficiently and safely. Furthermore, Flow Sharing technology contributes to a smooth and consistent digging cycle while optimizing fuel consumption.

The design of the boom and digging arm is also worth highlighting. By utilizing closed profiles of high-strength steel, the 906G achieves maximum strength and rigidity, enabling it to handle heavy lifting and demanding digging tasks with ease. The large plain bearings in all joints with a double sealing system extend the machine's lifespan while ensuring low running costs.

This ability to navigate and work in complex environments, combined with its powerful performance and ease of use, makes the 906G an indispensable resource for modern construction projects. With the Hydrema 906G, operators get a backhoe loader that not only meets the tough demands for precision and efficiency in today's construction industry, but also maximizes work capacity with its advanced side shift function and exceptional working range.

Overall, the Hydrema 906G backhoe loader offers a combination of flexibility, strength and economical operation that makes it an ideal solution for a wide range of construction applications.

Hydrema Telematics

INNOVATIVE DATA UTILIZATION AND ENHANCED EFFICIENCY

The Hydrema 906G is equipped with the advanced Hydrema Telematics system, a groundbreaking technology that transforms the way machine performance and operations are monitored and controlled. This system integrates a GSM/GPS device directly into the machine, enabling real-time data collection and transfer to a central server. Using the Hydrema Telematics portal or app, owners and operators can access a treasure trove of vital information that increases operational efficiency and facilitates maintenance planning.

Some of the key data Hydrema Telematics collects includes the machine's geographical location, operating hours, battery status, distance travelled and important alarm and fault codes. This provides in-depth insight into the machine's usage and condition, which is crucial for optimising usage and minimising downtime. In addition, the system supports maintenance and service planning, ensuring that the machine is always working optimally.

Hydrema Telematics provides users with a valuable resource to track and manage the performance of their machines, which not only improves day-to-day operations, but also contributes to long-term cost efficiency and reliability. This technology is clear evidence of Hydrema's commitment to providing innovative solutions that empower their customers' operations.

Furthermore, the Hydrema Telematics system in the 906G gives operators an unrivalled ability to track and analyse machine performance over time. With access to detailed reports and analyses of operational data, users can make informed decisions on how to best utilise the machine, leading to improvements in both productivity and fuel efficiency. All in all, Hydrema Telematics is an essential tool in modern machine management, adding a significant layer of intelligence and control to the Hydrema 906G's already impressive feature set.

HYDREMA 906G: REVOLUTIONARY INNOVATION AND OUTSTANDING PERFORMANCE IN A BACKHOE LOADER

Double Command

DOUBLE COMMAND SYSTEM

REVOLUTIONISING CONTROL

The Hydrema 906G's Double Command System represents a revolution in machine operation. This innovative system allows the operator to control both wheel steering and all hydraulic functions directly from two joysticks located in the armrests. This not only increases the maneuverability and precision of the machine, but also allows for more intuitive and ergonomic operation. With the ability to use the system in both directions of travel, the Double Command System offers unrivalled flexibility and efficiency, making the 906G one of the most user-friendly and versatile backhoe loaders on the market.

Cab

THE CAB

COMFORT AND ERGONOMICS

The cab of the Hydrema 906G has been carefully designed to ensure comfort and minimize vibration levels. It has suspension that reduces whole-body vibrations and minimizes fatigue. The cab suspension is rubber-mounted for even lower vibration levels, creating a comfortable and noise-free work zone for the operator. This ensures high productivity and comfort, even in demanding working conditions on the construction site.

Tiltrotator

ROTORTILT

FLEXIBLE PRECISION

The Rotor tilt feature on the Hydrema 906G is a crucial addition that transforms the machine's versatility and precision capabilities. This feature allows the excavator bucket to rotate and tilt, giving the operator unrivalled control and flexibility for complex digging and loading tasks. With Engcon's rotor tilt, the 906G can easily handle jobs with tight working angles and hard-to-reach areas, significantly increasing efficiency on the jobsite.

MAXIMIZING EFFICIENCY AND UNLEASHING INNOVATION IN BACKHOE TECHNOLOGY

SAFETY IN FOCUS

The Hydrema 906G is designed with a strong focus on safety, making it a safe choice for construction projects. The machine is equipped with a range of safety features, including a robust ROPS/FOPS approved cab that ensures protection against upheaval and falling objects. It is also equipped with efficient braking and stabilization systems for increased control and stability, even in demanding working conditions. Good visibility from the cab and intuitive control systems further contribute to operator safety. These safety features, combined with the machine's reliable construction, ensure that the 906G maintains a high standard of safety in the workplace.

ENVIRONMENTALLY FRIENDLY OPERATION

The Hydrema 906G is designed with the environment in mind, making it an ideal solution for sustainable construction projects. With its advanced Cummins B-4.5 Stage 5 engine, the 906G is designed to minimize emissions and increase fuel efficiency. This engine supports the use of biodiesel (HVO), providing further opportunities to reduce environmental impact. Furthermore, the machine's efficient operation and optimized fuel consumption contribute to reducing the overall carbon footprint. These eco-friendly features, combined with the machine's robust performance, make the 906G an excellent choice for those looking to balance powerful machine performance with environmental responsibility.

ROBUST CONSTRUCTION AND LOW RUNNING COSTS

The Hydrema 906G is manufactured with an exceptionally robust design that ensures long life and low running costs. It is built with quality materials and advanced engineering, giving it a solid and durable structure that can withstand the toughest working conditions. Its efficient Cummins engine and optimized hydraulic system reduce fuel consumption and maintenance needs, meaning the machine is not only reliable but also economical to operate. This combination of strength, durability and economic efficiency makes the 906G an attractive choice for any business looking to maximize their investment and minimize costs over time.
