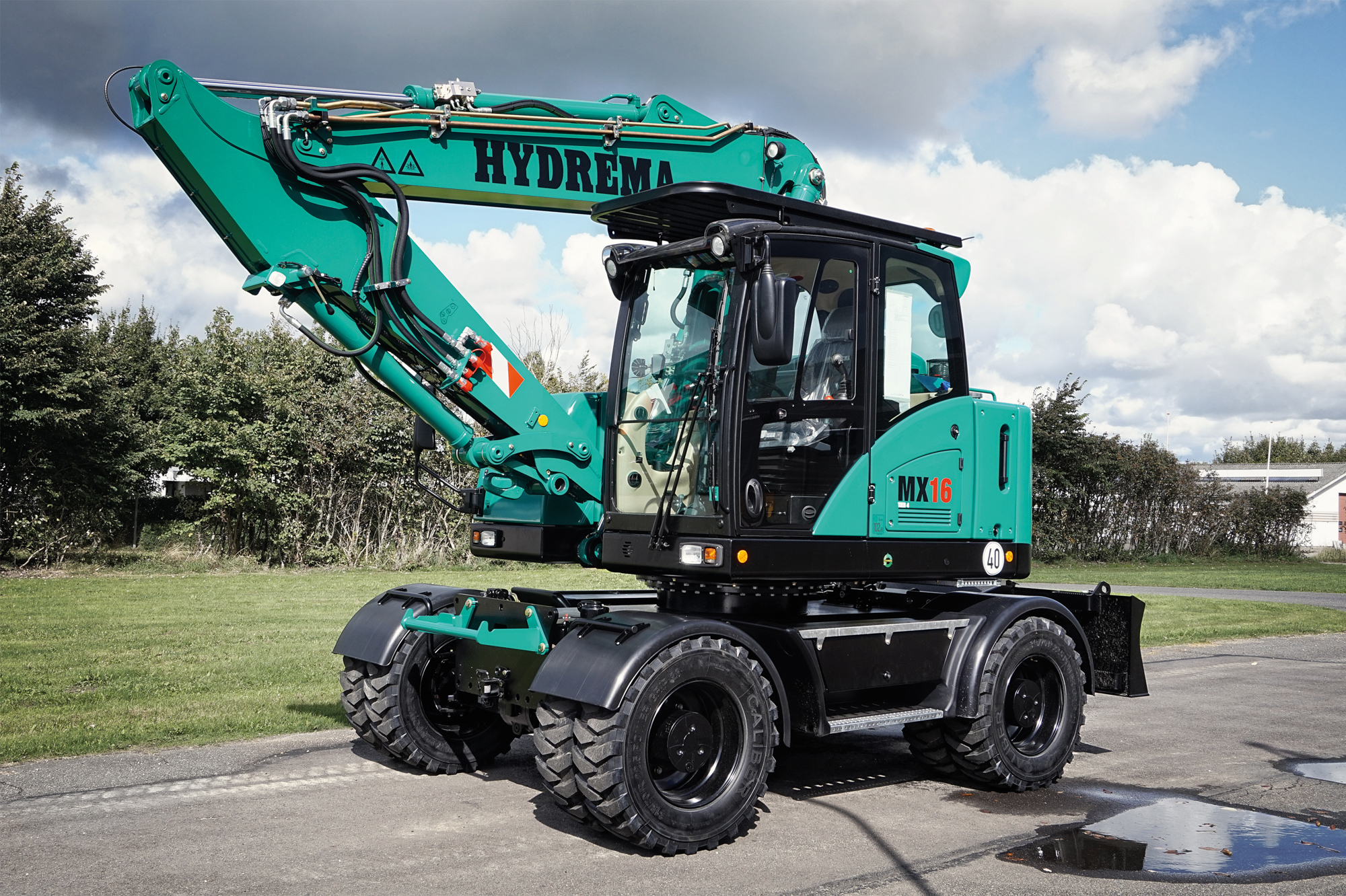

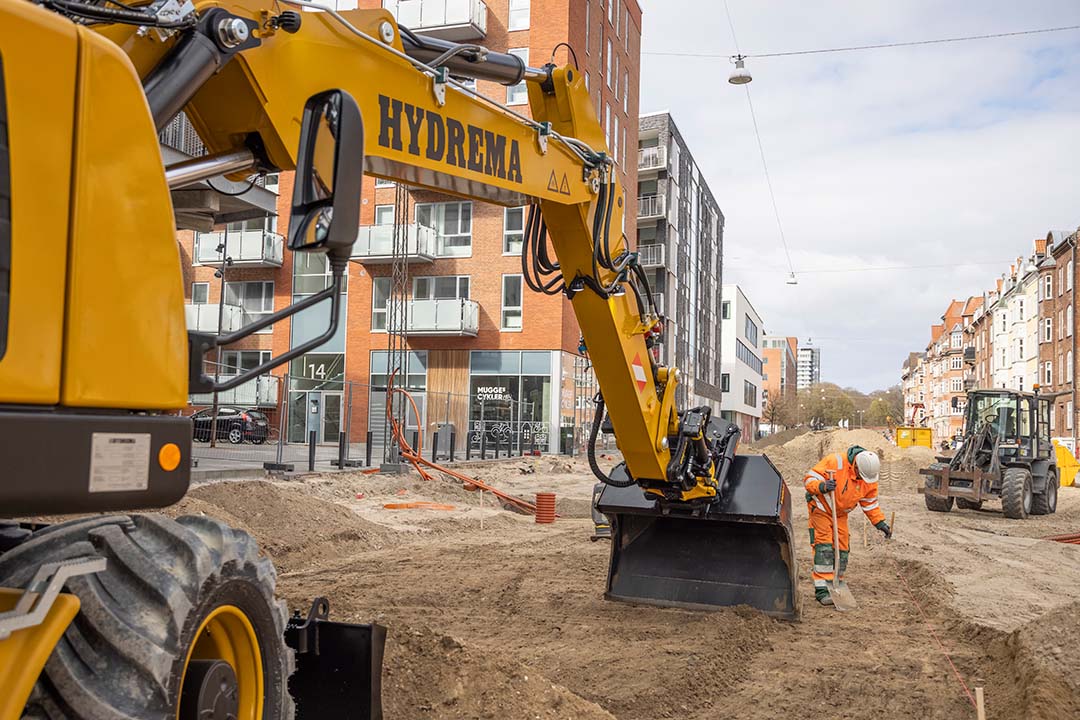

The Hydrema MXG16 introduces a revolution in excavators with its innovatively designed two-piece boom, a standard feature on all models. A fusion of robustness and accuracy, this boom is made from high-strength steel and is available in 6’7’’, 8’2’’and 9’10’’ variants to meet your unique requirements. The MXG16 especially shines when it comes to ease of use and versatility, thanks to its hydraulic quick-change system and the option to add a tilt rotator as an optional accessory. These features make it effortless to switch between different attachments, which significantly increases efficiency. Whatever the nature of the job, the MXG16 guarantees you the versatility and power needed to complete the job with maximum efficiency.

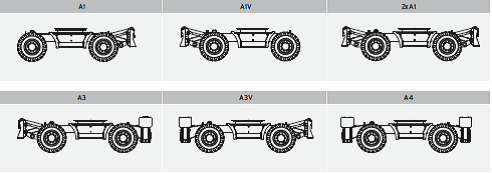

The Hydrema MXG16 defines flexibility with its six customizable undercarriage configurations, designed to meet the challenges of any terrain. This wheeled excavator guarantees improved stability and performance in a wide range of work situations:

• Rear dozer blade (A1)
• Front dozer blade (A1V)
• Front/rear dozer blade (2xA1)
• Front dozer bl./rear stabilizers (A3)
• Front stabilizers/rear dozer bl. (A3V)
• Front/rear stabilizers (A4)

These customized undercarriage choices give the MXG16 the ability to adapt precisely to your work needs, transforming the way you experience daily tasks. Whichever configuration you choose, the MXG16 will improve your efficiency and comfort in the workplace.

This wheeled excavator is equipped with state-of-the-art ZF axles that amplify the machine's performance in demanding conditions. Thanks to the planetary reduction in the wheel hubs, the MXG16 achieves superior torque and precision control, making delicate tasks seamless. Furthermore, each axle is equipped with integrated brakes, resulting in excellent digging brake capacity. The front axle of the MXG16 is specially designed with a centre bolt and pendulum lock, allowing a pendulum angle of +/- 8º. This provides increased stability and agility, especially on uneven surfaces.

With its advanced hydraulic steering system, the MXG16 is designed to ensure precise handling even in the most challenging situations. This system allows for an extra refinement with the addition of joystick steering. The joystick, which supports speeds up to 12 mph, gives the driver increased control and a more nuanced driving experience. This innovative addition transforms the control of the MXG16, making even the most advanced man oeuvres intuitive and effortless. The joystick control allows the operator to navigate the power and accuracy of the machine with ease, making even complex tasks a manageable process.

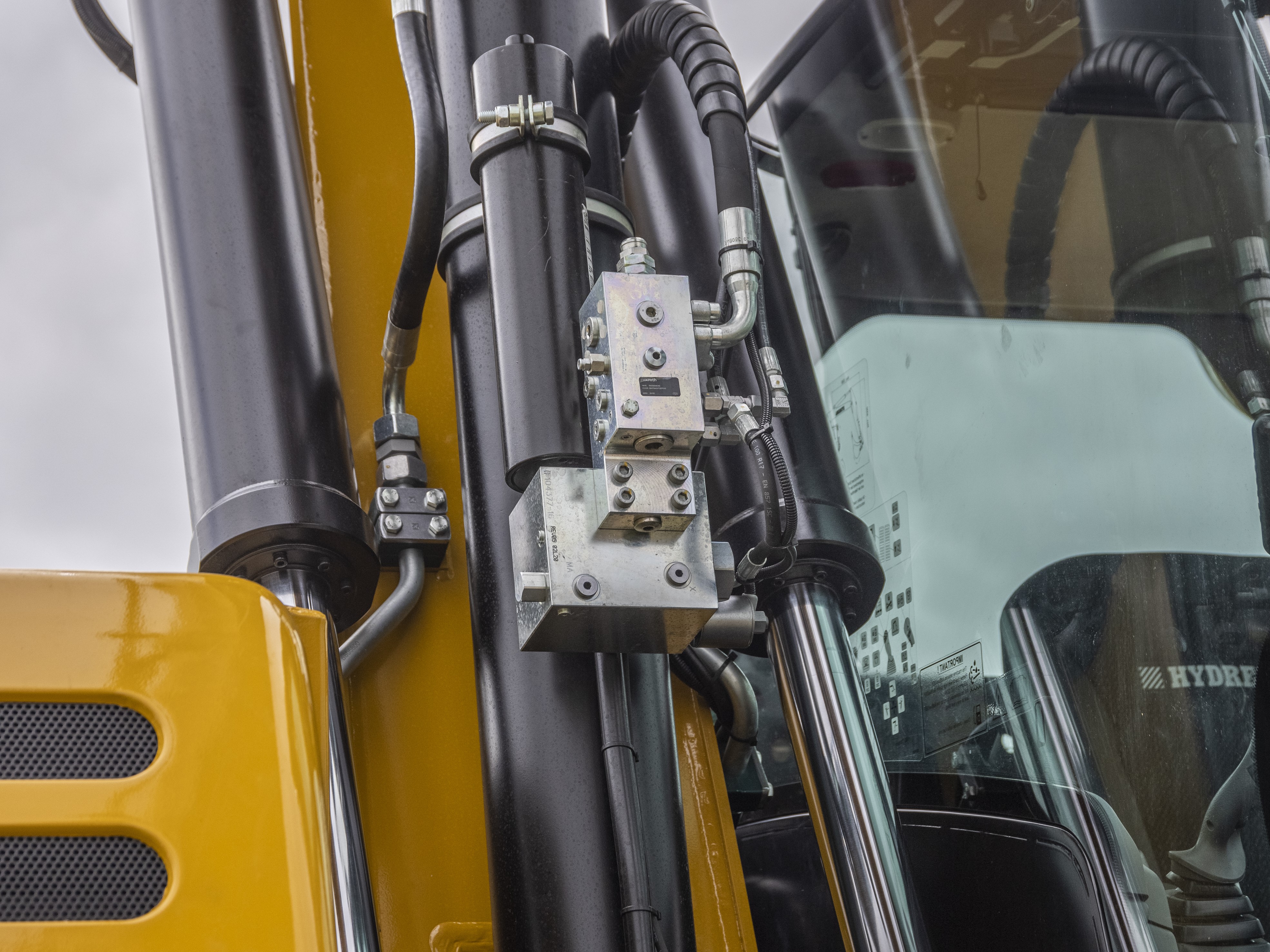

The Hydrema MXG16's hydraulic system, with its dual-circuit Load Sensing technology and a separate high-pressure bending system, ensures precise and economical operation. The system, equipped with electronic power regulation and intelligent Mode Control, allows fine-tuning of work and fuel efficiency via ECO Mode. With up to three adjustable hydraulic circuits, the MXG16 offers simple in-cab customization for different attachments, optimizing task switching and maximizing productivity.

Oil quantity:

Pump 1: - Working hydraulics - 84 gpm
Pump 2: - Slew hydraulics - 23 gpm

System pressure:

Working hydraulics: - 5,076 PSI
Slew hydraulics: - 5,729 PSI
Hydraulic circuit 1, ZV1: - 8-53 gpm
Hydraulic circuit 2, ZV2: - 4-26 gpm
Hydraulic circuit 3, ZV3: - 13-53 gpm

The MXG16 features an impressive Cummins B 4.5 L Stage 5 engine, a perfect fusion of environmental awareness and powerful specifications. This engine is equipped with a comprehensive emission control system, consisting of DOC, DPF and SCR with AdBlue, which effectively reduces emissions to meet the strictest environmental requirements. Equipped with a 16-valve Common-Rail Turbo Diesel system and an intercooler, the engine produces up to 175 hp and a maximum torque of 780 Nm. The Hydrema MXG16 is designed with efficiency and sustainability in mind, with a large 280-litre fuel tank and a 31.5-litre AdBlue tank, minimizing refuelling needs and maximizing uptime.

This excavator excels with its hydrostatic transmission and constant four-wheel drive, which ensures consistent and smooth power transfer in all conditions. Its electronically controlled drive motor allows for precise speed adjustment, while the innovative two-speed soft-shift Power shift transmission allows for switching between manual and automatic gear selection. This model maintains its performance and efficiency even when loaded with additional equipment such as outriggers or heavy attachments, cementing its position as a highly versatile wheeled excavator.

Road gear (mph): 23
Off-road gear (mph): 0-6
Creep gear (mph): 1.2
Max. traction (lpf): 24,945

Speeds are given for a standard machine with dozer blade and standard tire fitment. With additional weight such as supports, rotor tilt and heavy attachments or other equipment, the maximum speed may be lower.

Equipped with a powerful 24V electrical system, including a 70 Amp alternator and two robust 12V, 100Ah batteries, the MXG16 ensures a constant and reliable energy supply. Its electrical system is enhanced with extra protected wiring and uses only waterproof connectors, extending its lifespan and guaranteeing flawless operation. Easy access to fuses and relays at the cabin makes quick inspections and maintenance convenient. The MXG16 also includes an electrical emergency operation function for increased safety, which kicks in, in the event of a failure in primary systems, as well as an automatic circuit breaker that protects the machine and simplifies the maintenance process.

Safety and ease of use are at the centre of the MXG16's design, thanks to its automatic circuit breaker. This innovative system ensures that all electrical systems are automatically switched off to save energy and extend battery life when work is completed and you leave the machine. Upon your return, the door sensors reactivate the system, making it easy to resume work without a manual restart. The control panel includes a built-in timer that controls this shutdown process for added convenience. In addition, there is an emergency switch located within easy reach in the cab, providing an extra safety measure and peace of mind while working.

The MXG16 is designed with a focus on an intuitive and ergonomic user experience. With advanced joysticks that include four proportional servo functions, a proportional roller and four buttons, you get detailed control over the machine's various functions. The optional hydraulics are conveniently handled via the joystick rollers, while the foot pedals allow easy operation of the two-piece boom, supports and dozer blade, supporting efficient multitasking. The dashboard's electronic adjustment of pressure and flow for the option hydraulics allows you to fine-tune the machine's response to match your working style precisely.

The MXG16 is equipped with a state-of-the-art, high-pressure hydrostatic slewing system that promotes smooth and accurate rotary movements. This system incorporates a cutting-edge energy regeneration feature that recycles energy from the brakes to the diesel engine, improving energy efficiency with every rotation. The 'soft start' function and angle sensors ensure a smooth start and precise control when slewing, and the mechanical slew brake, built into the planetary gear, contributes to extra safety and stability. The Hydrema MXG16 impresses with a rotation speed of 10.8 rpm and a swing torque of 50 kNm, making it ideal for precise movements on demanding construction sites.

Hydrema's MXG16 is equipped with an efficient dual-circuit braking system, which includes maintenance-free oil immersed brakes on each wheel, ensuring durability and reducing the need for maintenance. The built-in parking brake in the transmission is a crucial safety feature that keeps the machine secure when not in use. As a standard feature, the MXG16 also comes with an automatic excavation brake, which improves safety while working by automatically stabilizing the machine the moment digging activity begins. This advanced braking solution is further proof of Hydrema's commitment to delivering safe and reliable machines.

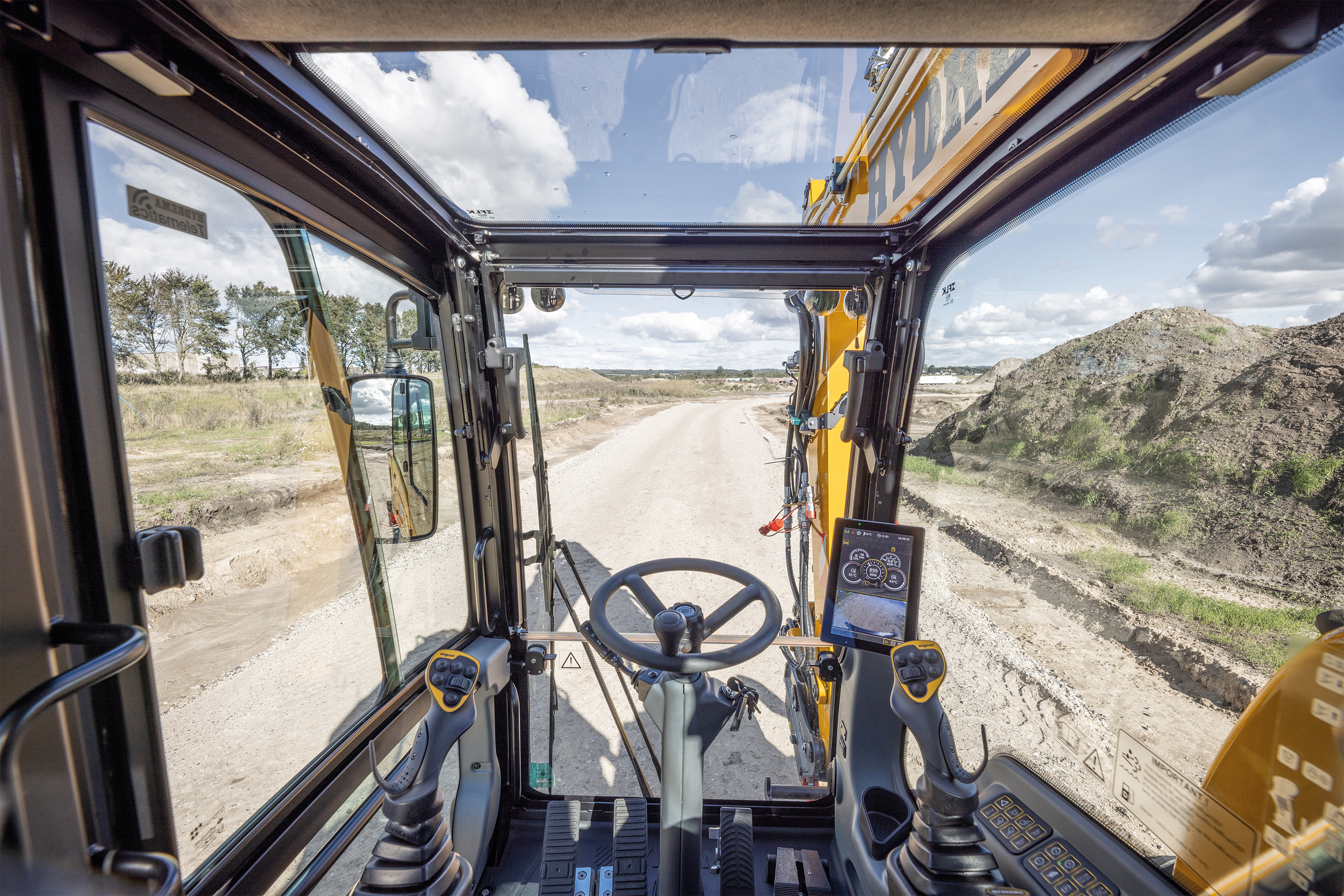

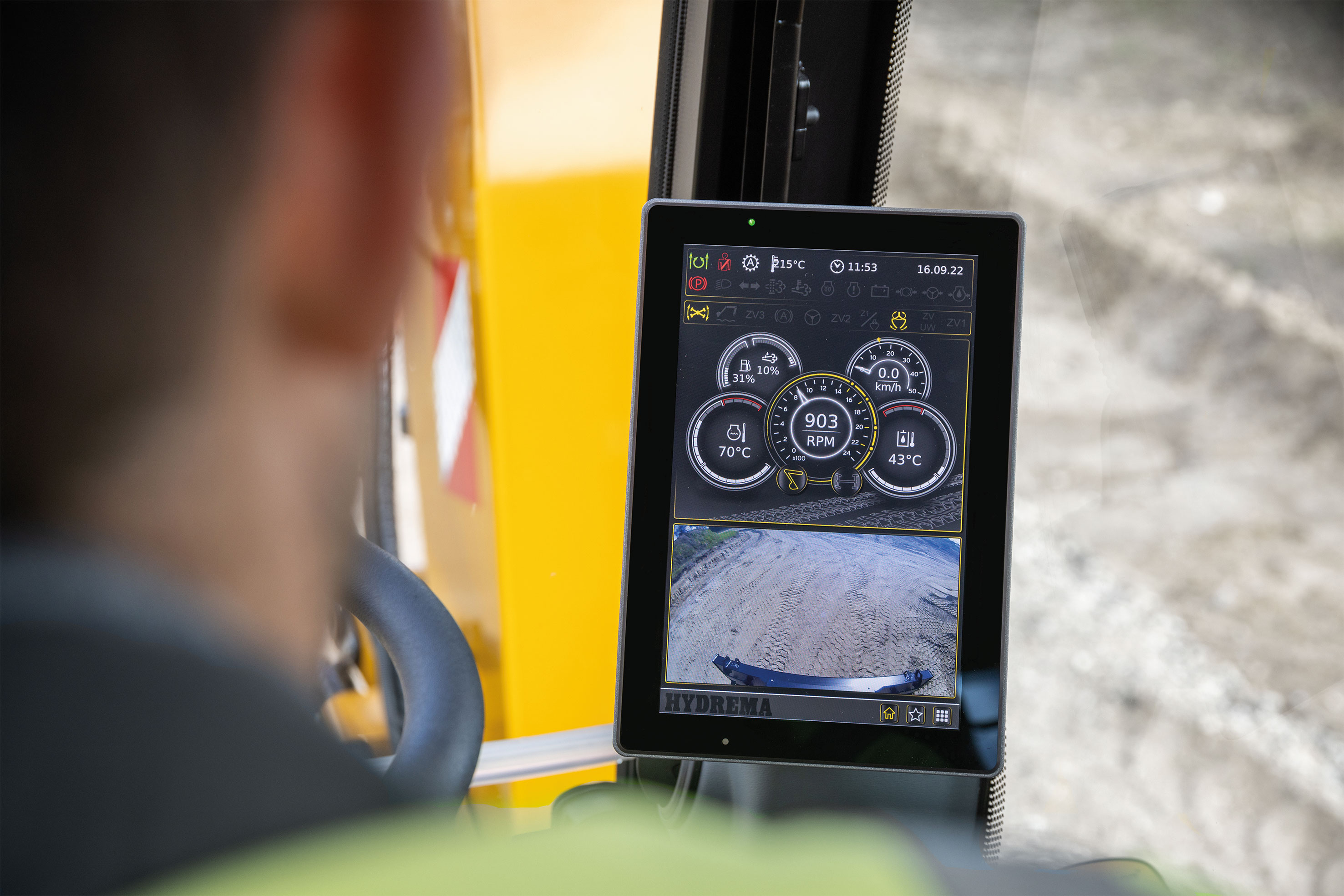

The MXG16's cab is an example of exceptional space and functionality, designed with ROPS certified safety and comfort in mind. This cab features a sliding window in the door and a two-part windscreen window, offering versatile options for ventilation and easy access. A transparent roof window increases light penetration and improves visibility. Driver comfort is ensured with an adjustable steering column and fully adjustable armrest for ergonomic comfort. The cab includes an advanced air conditioning system with seven air outlets for perfect temperature control and an air-suspension seat that offers superior comfort. Technology enthusiasts will appreciate the cab's large 10-inch touchscreen and the inbuilt display controller in the armrest. Safety is enhanced with large, electronically adjustable door mirrors and a rear-view camera for a complete overview. The cab interior is completed with practical storage space under and behind the seat, making this cab an ideal workstation.

The MXG16 is designed with a focus on minimizing noise to improve the working environment. Inside the cab, the sound level is kept at an impressively low level of only 68 dB(A), creating a calm atmosphere that promotes concentration and reduces stress for the operator. Externally, the MXG16 contributes to a lower noise impact in the workplace with a sound level of 102 dB(A), emphasizing Hydrema's commitment to limiting noise pollution, even during intensive use.

Dimensions with standard tires 10.00-20.

MACHINE WEIGHT

Weight stated with 441 lb quick hitch and 882 lb bucket.

WORKING AREA AND BREAKOUT FORCE

The working area is specified with Hydrema standard bucket and 1800 mm grab height.
