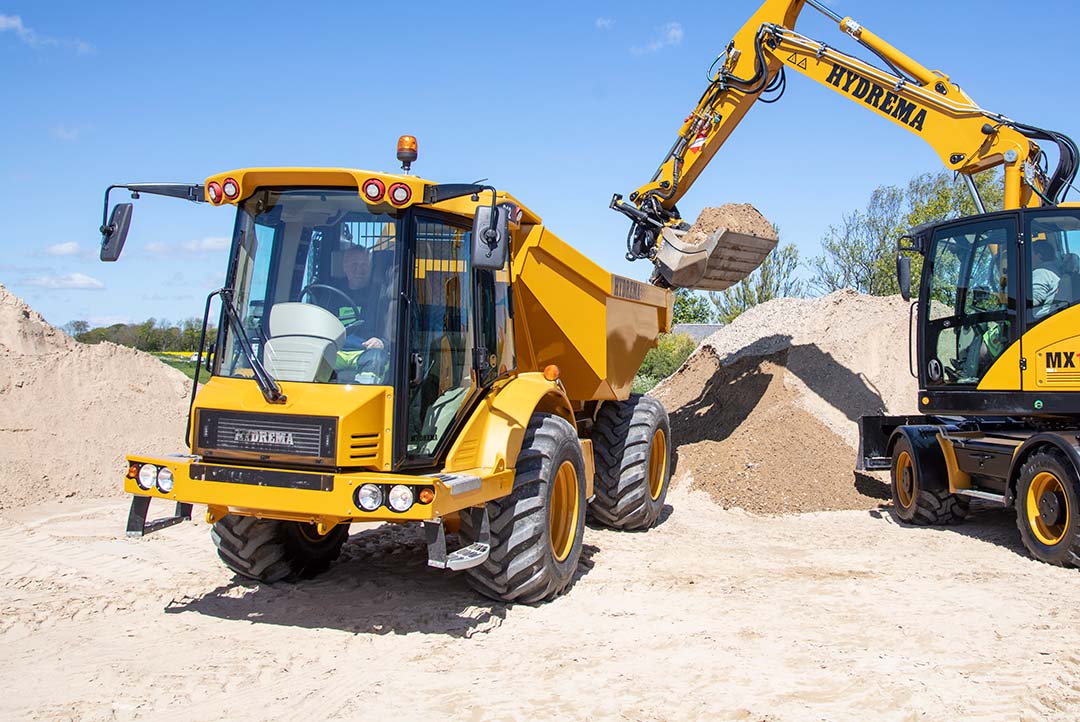

912G Load On Route Constr Site 912G Getting Loaded By Hydr MX Excav Constr Site 912G Rear View Unload City Site 912G Front And Side On Route Constr Site

912G

Dump Truck


Properties

  • 22 lbs load capacity
  • Cummins B4.5 Stage 5 engine
  • Easy to operate, safe and robust
  • Spacious, suspended cab with one-step entry
  • Chassis with articulated joint, low centre of gravity and high stability
  • 180° MultiTip
  • Suitable as a rental machine

912G SERIES

A compact and robust dump truck designed with off-road superiority. In the 912G series you will find: 912G, 912GS og 912HM. These Hydrema 912G series dumpers are articulated, ensuring optimal maneuverability on uneven terrain. With a low kerb weight combined with powerful performance, they offer exceptional durability and longevity. Ideal for any construction site and any demanding terrain.


Rugged Dump Trucks with Superior Off-Road Performance

The Hydrema 912G series redefines what it means to be a dump truck in the 10-ton class. These dumper trucks are designed to handle the most challenging terrains with ease. With a combination of advanced technology and Danish engineering, these machines ensure optimal performance even in the most demanding conditions. Choose the Hydrema 912G and experience the difference for yourself.


An Efficient Powerhouse with a Focus on Environmental Awareness

With its powerful 4.5 liter 16-valve 16-valve Common-Rail Turbodiesel, the Hydrema 912G stands as a titan in the machine world, delivering up to 147 hp (108 kW) of impressive energy. Thanks to the integration of cutting-edge emission control technologies such as DOC, DPF and SCR catalysts with AdBlue addition, the 912G is not only a step ahead in performance, but also in environmental responsibility, ready for future standards and fully compatible with biodiesel.

Feel the Hydrema 912G dump truck's fluid power with the advanced ZF WG 115 6-speed "ERGO POWER" Soft-Shift transmission. This transmission, equipped with 100% electronic control, ensures smooth gear changes where traction is never lost. With a wide range of gear options and the easy switching function between automatic and manual steering via the joystick, you are guaranteed full control and constant 4-wheel drive, no matter the terrain or task.

Chassis

Experience unrivalled stability with a central articulated pivot point, pendulum rod and dual-acting hydraulic stabilisers that guarantee a safe driving and tipping experience. With an elegant integration of the fuel tank and hydraulic tank in the front chassis, the design is both practical and efficient. For increased control, the oscillation movement can be locked and with an impressive oscillation angle of +/- 12°, the machine is made for any terrain challenge.


AXLES

The 912G model has no suspension, unlike the 912GS and 912HM, which emphasizes its direct and robust design. Equipped with advanced planetary reduction gears in the wheel hubs and specially designed separate oil chambers, this model ensures reliability and durability. Its front axle is reinforced with an automatic friction differential lock, while the rear axle boasts an efficient electro-hydraulic 100% differential lock, providing unrivalled control and performance on all terrains.


TRANSMISSION

Experience the seamless power and precision of the ZF WG 115 6-speed "ERGO POWER" Soft-Shift transmission, enriched with 100% electronic control. This advanced technology guarantees a silky smooth gear shifting experience without compromising traction. With 6 fast forward gears and 3 reliable reverse gears, this transmission offers constant 4-wheel drive for optimal traction. Enjoy the flexibility of switching between automatic and manual shifting with a single press of the joystick buttons. Stay always on the move with constant 4WD.


ENGINE

Feel the power of the Hydrema 912G with the Cummins B-4.5L Stage 5 engine, equipped with the latest DOC, DPF and SCR catalyst technology and enriched with AdBlue. This 4.5 liter, 16-valve Common-Rail Turbodiesel features advanced cooling technology with its intercooler and adjustable electronic turbocharger. Experience impressive performance with up to 147 hp at 2000 rpm and 600 Nm (442 lb. ft) of torque at 1500 rpm. And with the option to run on biodiesel, it boosts your sustainability profile.


STEERING

Experience the precision of our advanced hydrostatic Load Sensing articulated steering. Equipped with two powerful dual-acting cylinders, this steering system guarantees effortless maneuvering. With an integrated emergency steering function and priority valve, safety is top notch. In addition, the steering cylinders with damping ensure a smooth and stable drive. All this with an impressive maximum steering angle of +/- 35°.


HYDRAULIC SYSTEM

Explore our efficient hydraulic pump, specially designed to deliver a powerful output of 84 l/min for the tipping function. With a priority valve for the steering function, we ensure optimal steering in all conditions. In addition, our model comes with a separate hydraulic pump, carefully calibrated for brakes and knee joint stabilisers to ensure optimal operation and reliability.


SOUND LEVEL

Enjoy low noise inside the cab with an LpA level of just 72 dB(A). Even outside the operator's cab, with a LwA level of 102 dB(A), our advanced design shows its ability to minimize noise. With Hydrema, you get both efficiency and a pleasant working experience.


ELECTRICAL SYSTEM

Equipped with a reliable 24V system and a powerful 70 Amp alternator, our design ensures you never get stuck. With two powerful 12V, 95Ah batteries, you're always ready for the day's tasks with Hydrema.


AUTOMATIC BATTERY ISOLATOR

Experience peace of mind with our automatic battery isolator that streamlines your workday by securing and reactivating your electrical system automatically. The electrical system stops when you leave the machine and turns back on when you open the door. Easily personalize the shutdown via the instrument display and stay safe with an emergency switch at your fingertips in the cabin - efficiency and safety in one.


FUEL

With a spacious 36.98 gallon diesel tank and a 3.69 gallon AdBlue tank elegantly integrated into the front of the chassis, you're guaranteed longer runtimes and optimal performance. The Hydremas design ensures a seamless and efficient fuel supply.


DUMP TRUCK BODY

Discover our robust 7.3 yd3 dump body, precisely manufactured from high-strength steel using advanced robotic welding. With an impressive payload of 10 tons and a flexible 75° tip angle, both rear tip and MultiTip ensure a fast and efficient tipping time of just 6 seconds. Quality and efficiency in a perfect combination with the Hydrema 912G.


Multitip

Want even more flexibility? Choose the MultiTip function as an optional extra for this model. Experience our efficient swivelling system that gives you quick rear and side visibility. A robust slewing ball bearing design ensures reliable turning, controlled by two dual-acting cylinders. Furthermore, our powerful tipping cylinders guarantee a reliable and safe tipping method on all inclines.


Multichassis

The Hydrema 912G's optional Multichassis epitomizes the adaptability and functional diversity of the dump truck. This versatile chassis allows the user to easily switch between different specialized tasks. It's a perfect solution for those who require a versatile and reliable dumper that can handle a wide range of tasks without compromising on performance. With the Hydrema 912G's Multichassis, you can easily tailor the machine's function to the unique requirements of the jobsite, maximizing its usability and productivity.


BRAKES

Discover our advanced two-circuit hydraulic servo system that ensures optimal braking with oil immersed brake discs at each wheel. These are self-adjusting and require minimal maintenance. For added safety and convenience, we've included a maintenance-free "Fail-safe" handbrake that is electro-hydraulically activated, ensuring peace of mind every time you park.


OPERATORS CAB

Enjoy the comfort of our spacious cab, designed with both ROPS and FOPS for your safety. It offers exceptional visibility and can be equipped with either a mechanical or air suspension seat. For a customized driving experience, we've included a fully adjustable steering wheel and intuitive multi-joystick controls.

Dimensions

    STD. TIP MULTITIP MULTICHASSIS
Tyres   600/55-26,5 600/55-26,5 600/55-26,5
Total weight lbs 38,074 39,087 39,683
Unladen weight lbs 16,028 17,042 13,448
Load capacity lbs 22,046 22,046 26,235
Body capacity ft3 8,213889 8,213889 -
Turning radius ft 20’ 20’ 20’
Ground pressure (loaded) Psi 17.69 17.84 -
Track ft-in 6’1” 6’1” 6’1”
Total width ft-in 8’1” 8’1” 8’1”
Clearance ft-in 1’6” 1’6” 1’6”
Dump truck body width ft-in 7’3” 7’3” -
Total height ft-in 9’ 9’ 9’
Loading height ft-in 7’4” 7’10” -
Height with raised body ft-in 14’5” 14’11” -
Tipping clearance ft-in 3’8” 4’2” -
Overhang, rear ft-in 3’3” 2’12” -
Wheel base ft-in 10’1” 10’1” 10’1”
Length ft-in 19’6” 19’3” 18’6”
Approach angle, front ° 27 27 27
Approach angle, rear ° 75 80 -
Tipping angle ° 75 75 -
Overhang, front ft-in 6’2” 6’2” -

HYDREMA 912G: Where Powerful Performance Meets Sustainable Technology

Meet the impressive 912G engine, the centrepiece of our Hydrema 912G series. We are proud to introduce this remarkable model, which not only offers powerful performance, but also meets the strictest emission requirements.

The Hydrema 912G represents an excellent balance between robustness and flexibility, making it an ideal solution for a wide range of earthmoving applications. This 10-tonne dump truck has been developed with a deep understanding of the demands of modern construction sites and terrain management, making it a reliable and efficient part of any fleet.

To fulfil these high standards, we've incorporated the latest technology. With the 912G, you get a combination of reliability, strength and sustainability. Our commitment to the environment is reflected in the way we've designed this machine, so you can be sure you're getting the best of both worlds.

The 912 can match most dump trucks in smooth driving and is highly fuel-efficient and reliable with low running costs and good resale value

Unleash Limitless Power and Precision with the 912G

The 912G is equipped with a state-of-the-art hydrostatic transmission that allows it to reach speeds of up to 25 mph without compromising its formidable traction.

Discover the sophisticated and intelligent ZF Soft-Shift six-speed transmission. It adapts to your needs with the option of fully automatic or manual gear shifting. With its ability to automatically shift optimally between two gears regardless of the terrain, it ensures effortless acceleration, no matter how heavy the load.

Experience the benefits of our advanced ZF WG 115 6-speed "ERGO POWER" Soft-Shift transmission, which takes fuel efficiency and performance to new heights. Inspired by the start/stop technology of modern cars, it ensures you make the most of every drop of fuel.

Hydrema Telematics

Hydrema Telematics: Pioneering the Future of Machine Control and Monitoring

Hydrema Telematics is standard equipment on all new Hydrema machines. The system gives you direct access to important information such as temperatures, oil pressure, fuel consumption, current fuel level and much more - all accessible from both the web portal and your smartphone. More than just monitoring, Hydrema Telematics gives you insight into fault codes, ensuring service and repairs are carried out quickly and accurately.

Your machinery can also benefit from updates via the telematics can-link device. This means that software updates can be uploaded remotely via the GSM network, avoiding the need for physical visits from Hydrema's service team. These advanced features ensure that machine owners experience minimal downtime and achieve the most efficient operation.

The customisability of Hydrema Telematics also extends to other tracking systems, as the system can provide data via API to external platforms such as Trackunit. The GeoLeash feature ensures dynamic location tracking of your machines so you always know where they are. Through collected data and analyses, Hydrema Telematics gives you the tools you need to understand and further improve your fleet.

Get the most out of your business with Hydrema Telematics. The system enables proactive management of service and maintenance tasks, giving you both financial and operational control over your machines. Monitor productivity, schedule maintenance tasks, reduce idle time, fuel consumption and downtime, all while saving money and improving the overall value of your vehicle.

With in-depth analytics and data collection, you can adapt and optimise machine performance, reduce fuel consumption and maximise uptime. All this while comparing your machines' and operators' driving patterns and fuel consumption against each other, making it easy to make adjustments that can benefit your business and help your operators learn from each other.

With Hydrema Telematics, you're always one step ahead. The system is designed to ensure your machines are working optimally and your business is as efficient as possible. With a free 3-year subscription, you get full access to all features, services and software updates. It's more than just technology; it's the future of machine management.

HYDREMA 912G Dump Truck: Where Flexibility Meets Comfort

Multitip

MultiTip

OPTIMISE YOUR WORK WITH GREAT FLEXIBILITY

The 912G's optional MultiTip system takes efficiency to the next level. With the ability to continuously unload accurately within a 180° range, it offers the user unrivalled flexibility and precision when unloading, allowing materials to be placed exactly where they are needed, every time. This system optimizes workflow and reduces time spent on any job site.

Cab

THE CAB

GREAT OPERATOR COMFORT AND SAFETY

Step into a world of comfort with the 912G dump truck's spacious, suspended cab. The easy one-step entry combined with excellent visibility ensures drivers can operate the machine with optimal visibility. In addition to its ease of operation, the cab is designed with maximum safety in mind, so you can work with complete confidence in your Hydrema dumper truck.

Motor

THE ENGINE

INNOVATIVE AND SUSTAINABLE ENGINE TECHNOLOGY

The 912G is powered by the Cummins B-4.5L Stage 5 engine, a technological feat in its own right. With DOC, DPF and SCR catalysts and AdBlue addition, this engine ensures optimal performance and emission control. The 4.5 liter 16-valve common-rail turbodiesel engine with intercooler and electronically variable turbocharger delivers a maximum output of 147 hp (108 kW) at 2000 rpm. In addition, it delivers an impressive maximum torque of 600 Nm (442 lb. ft) at 1500 rpm.

912G: A Blend of Safety, Power, and Versatility

SAFETY

SAFETY IN THE DRIVER'S SEAT

For Hydrema, safety is not just an added feature, it's a core value. The 912G's unique design, combined with an assortment of LED lights, optimizes the hauler's visibility. In the cab, safety and comfort are combined; the spacious, suspended ROPS/FOPS cab offers excellent visibility. Driver comfort is ensured with a choice of mechanical or air suspension seat, as well as a fully adjustable steering wheel and intuitive multi-joystick controls. In addition, the Hydrema 912G's chassis is designed with a central knuckle, pendulum rod and two double-acting hydraulic stabilisers in the knuckle, ensuring unrivalled stability during both driving and tipping. This unique combination allows a pendulum angle of +/- 12°, while the pendulum movement can be locked for additional safety.

Multichassis

FLEXIBLE AND CUSTOMISED EFFICIENCY

The Hydrema 912G with MultiChassis (option) represents the ultimate in versatility and customizability in modern construction equipment. This innovative chassis is designed to act as a universal platform, making it possible to customize your Hydrema 912G dumper for a wide range of applications. Whether you need a water tank, a concrete mixer or a salt spreader, the MultiChassis offers a solution that can be fitted quickly and easily. This adaptability ensures you get the maximum return on your investment, as you can reconfigure your vehicle to meet seasonal or project-specific needs without having to invest in multiple single-purpose vehicles.

DO YOU HAVE QUESTIONS OR WANT TO KNOW MORE?

Do you have a question about the 912G, our other machines or service? Or would you like to be contacted by your local sales representative? Fill out the form and we'll get back to you as soon as possible.
