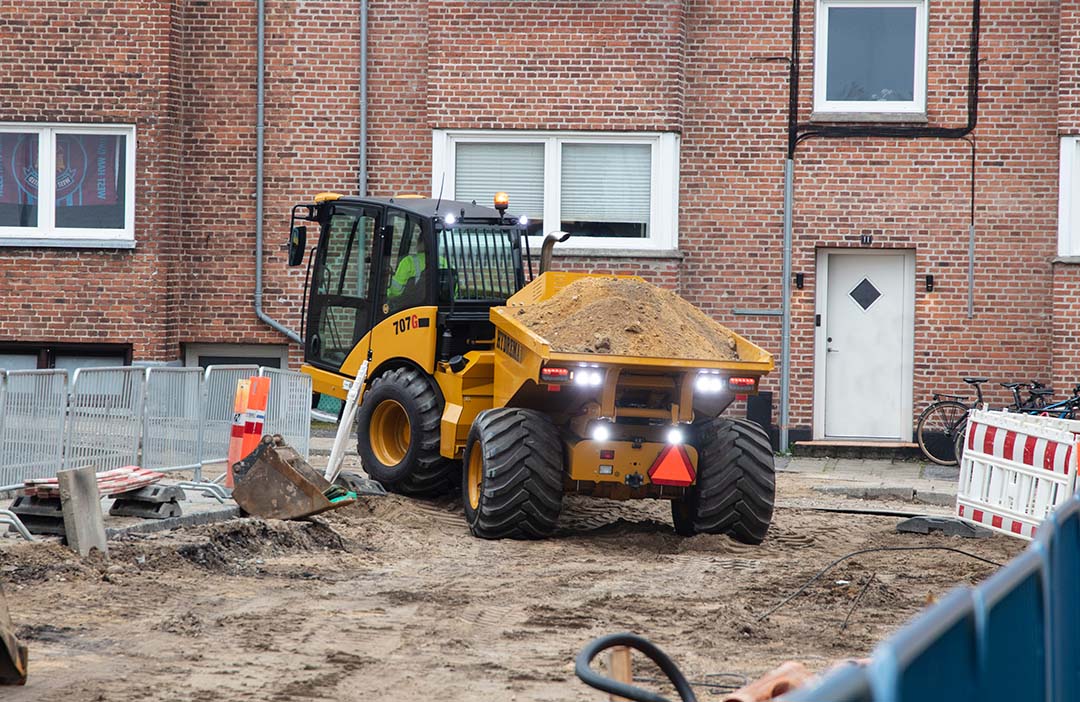

707G Loaded On A Golf Course (1) Hydrema 707 Dumper Unload Sideways 707G Loaded In Narrow Street Hydrema 707 Dumper Backhoe Loading 707Gandplus Rear View Multitip Sideways Unloading 707Gandplus Unloading In City 707Gandplus Multitip Sideways Construction Site

707G

Dump Trucks


Properties

  • 14,3 lbs load capacity
  • Cummins F3.8 Stage V with 75 hp
  • High mobility and stability
  • Chassis with articulated joints and low centre of gravity
  • Easy to operate and reliable
  • Outstanding visibility

707G SERIES

Enter the world of our compact articulated 7 ton dump trucks, the 707G and 707G Power+! Although they have a more compact design, they don't compromize on safety levels and can compete with larger dump trucks. They are equipped with a forward-facing cab, an oscillating articulated joint and a reliable hydrostatic transmission. This represents the ideal combination of efficiency and safety, wrapped up in a streamlined solution!


DISCOVER OUR IMPRESSIVE COMPACT DUMP TRUCKS

Solidly positioned in the 7-ton dump truck category, these dumpers combine compact design with outstanding functionality. You'll enjoy the panoramic 360° visibility, which allows you to safely manoeuvre around the jobsite. With enhanced safety features, they combine not only efficiency but also reliable safety. Due to their small size, they leave a minimal footprint on the terrain with an extremely low ground pressure. And don't let their compact shape fool you, as they carry the same high quality features as their larger articulated dumper counterparts. Efficiency, safety and strength - all in one impressive dump truck.


707G: SOPHISTICATED AND POWERFUL SMALL DUMP TRUCK

The Hydrema 707G is equipped with a powerful Cummins F3.8 Stage 5 engine. This advanced 16-valve Common-Rail Turbodiesel engine is designed to deliver maximum performance while meeting strict emission standards. With electronic variable turbocharging and EGR cooling, the engine is capable of generating 75 hp (55 kW) at 1500 rpm and a maximum torque of 400 Nm at 1300 rpm. This means the 707G has the power to tackle even the most challenging tasks.

The 707G is equipped with a hydrostatic transmission that offers 100% variable speed. This transmission allows you to choose between three driving modes: Creep, Normal and ECO mode. Creep mode gives you a maximum speed of 4,5 mph and precise control at low speed. Normal mode reaches a maximum speed of 21 mph at 2200 rpm, while ECO mode reaches a maximum speed of 19 mph at 1900 rpm and is ideal for road driving as it achieves maximum speed at lower engine speeds, saving fuel. So with the Hydrema 707G you get a highly powerful yet compact dump truck.

CHASSIS

Articulated chassis with center pivot point, and two double acting hydraulic stabilizers. The stabilizers gives high stability when driving and tipping. The fuel and hydraulic tanks are integrated in the front frame.

Pivot oscillation +/- 12 °.


AXLES

The axles have planetary hub reduction, and separate oil reservoirs in the hubs. The front axle has an automatic limited slip differential lock, and the rear axle has a hydro mechanical differential lock. The front axle has integrated reduction gear for the hydraulic motor.


TRANSMISSION

The Hydrema 707G's transmission is a key component that provides the flexibility and precision you need. With a hydrostatic transmission and the option of three driving modes:

  • Creep - max speed 4.6 mph. This makes it possible to adjust the speed precisely even at low speeds.
  • Normal – Max speed of 21 mph reached at 2200 rpm.
  • ECO – max speed of 18.6 mph reached at 1900 rpm. Provides increased comfort when driving on road, because the max speed is reached at lower engine revs.

Provides increased comfort when travelling on the road as the maximum speed is achieved at lower engine speeds. And whether you're working off-road or on-road, the constant 4-wheel drive and cruise control deliver a seamless experience.


ENGINE

The engine in the Hydrema 707G is an impressive piece of engineering. It boasts a Cummins F 3.8L Stage 5 engine with advanced technology, including DOC and DPF, delivering 75 hp (55 kW) at 1500 rpm and a maximum torque of 400 Nm at 1300 rpm. With its 16-valve common-rail turbodiesel, electronically variable turbocharger and EGR with cooling, it combines power and efficiency. And let's not forget the start/stop system that not only saves fuel, but also makes it easy to get going again with a single press of the accelerator.


STEERING

The steering in the Hydrema 707G is a customized experience. With hydrostatic Load Sensing articulated steering, two double-acting cylinders and an impressive maximum steering angle of +/- 38°, you get precise and responsive steering. The priority valve and integrated emergency steering ensures, you're always in control, even in demanding situations. And with damping steering cylinders, your driving experience is both comfortable and efficient.


HYDRAULIC SYSTEM

The Hydrema 707G's hydraulic system is the heart of its power and precision. With an impressive hydraulic pump that delivers 15.6 gal/min and a priority valve for steering, you get optimal control over the machines movements. At the same time, the separate pump for brakes and stabilisers ensures that safety and precision are maintained in all conditions. It's a machine that combines power and finesse for outstanding performance.


SOUND LEVELS

Experience peace of mind in the operators cab! The Hydrema 707G offers a quiet working experience with only 72 dB(A) inside the operators cab. Outside the operators cab, the noise level reaches up to 101 dB(A). So whether you're inside the operators cab or near the machine, you can work in a comfortably quiet atmosphere.


ELECTRIC SYSTEM

With the Hydrema 707G you get reliable electrical performance! Our 7 ton dump truck is equipped with a standard 24V system supported by a powerful 70 Amp alternator. The batteries consist of 2x 12V, 100 Ah, ensuring stable power supply for your needs, no matter the task. You can trust that the 707G is ready to tackle the most demanding jobs with its reliable electrical configuration.


DUMP TRUCK BODY

The Hydrema 707G delivers impressive performance with its 4.6 yd3 dump body with a 6.5 ton load capacity, made from high-strength steel and robotically welded to perfection. With a 69° tipping angle, where the bottom of the body rises 45° from horizontal, you get optimal flexibility and efficiency for handling materials. The 707G's dump body is designed to handle the most challenging jobs with ease.

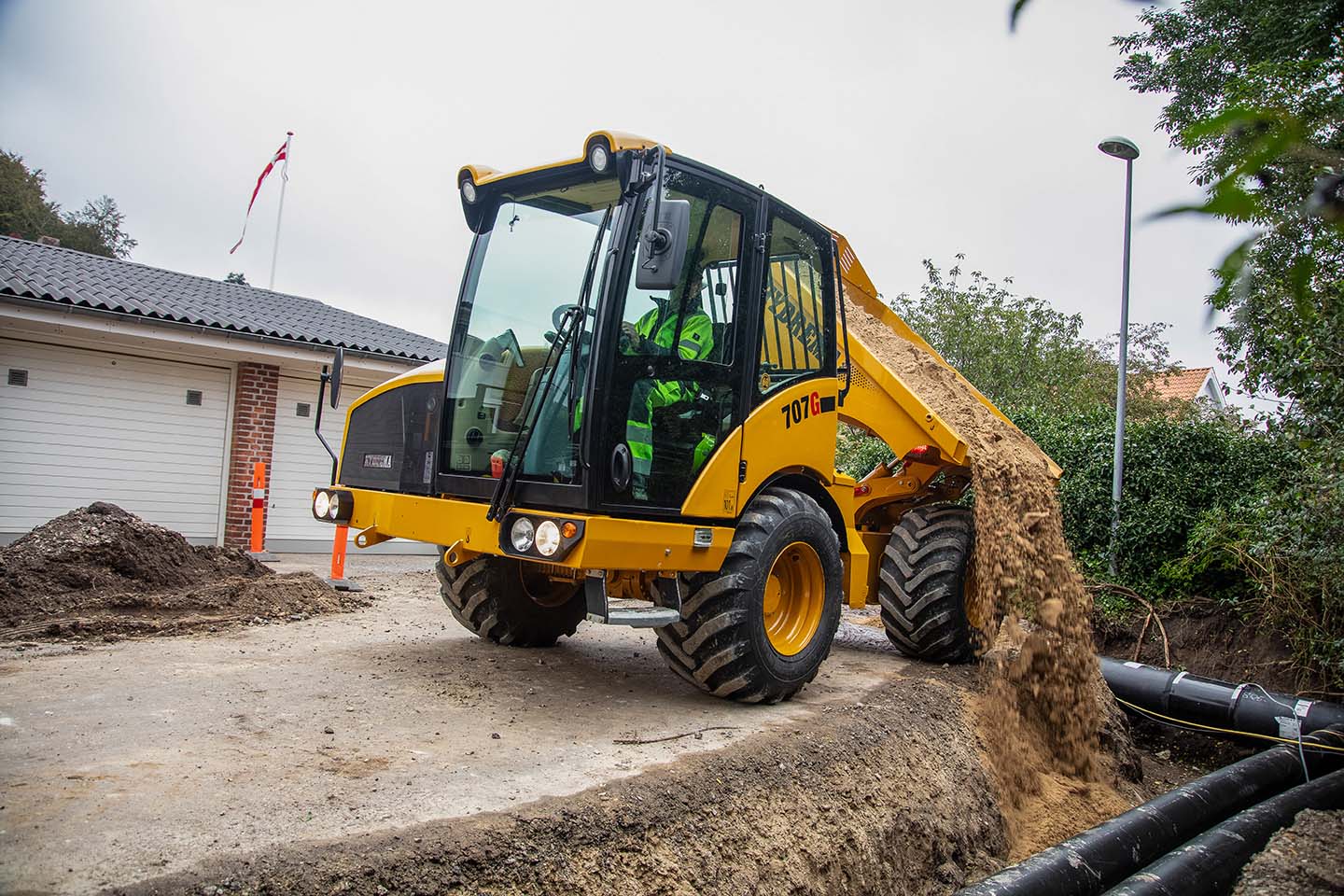

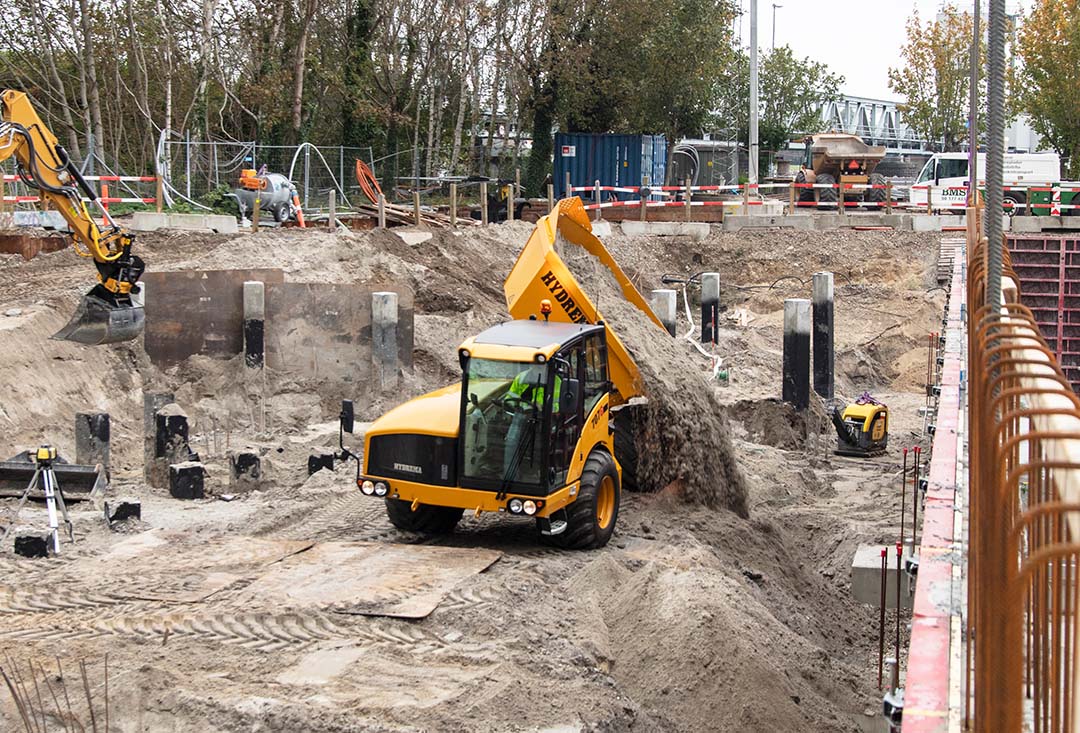

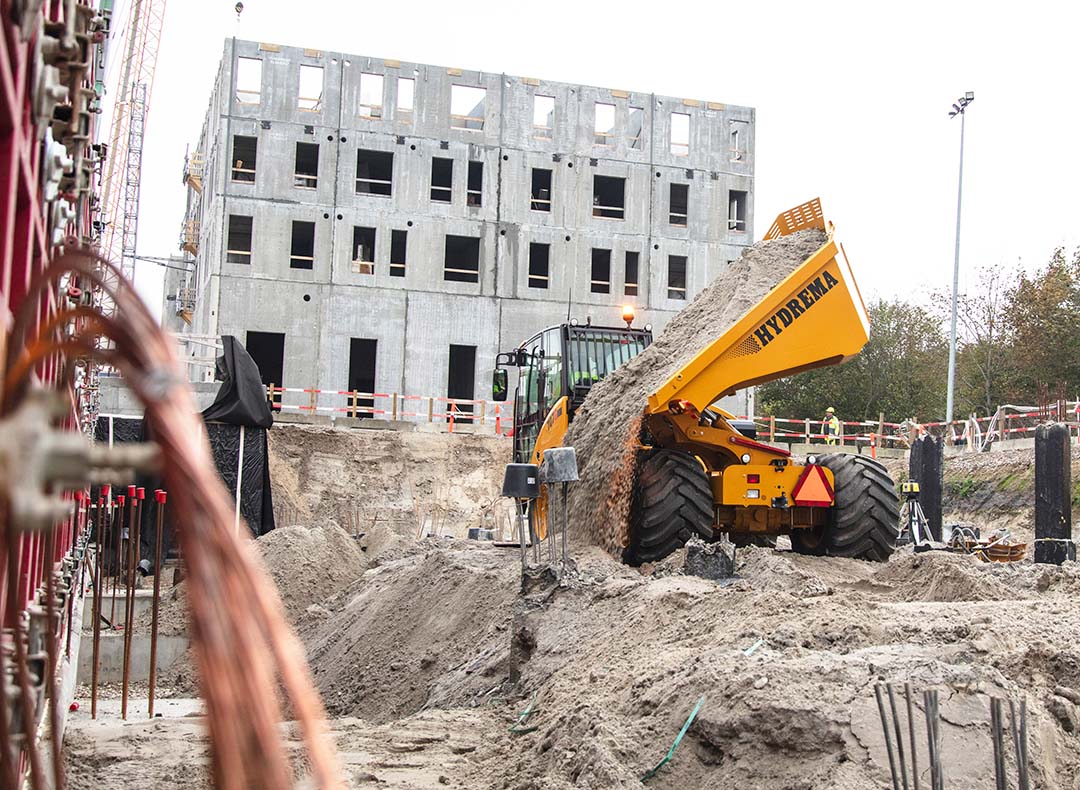

MULTITIP

The 707G impresses with its innovative MultiTip system that gives you fast and reliable rear and side unloading. This robust swivelling system is mounted on a large slewing ball bearing and is smoothly controlled by two double-acting cylinders. Powerful double-acting cylinders ensure that the body is pulled down regardless of the machine's inclination, meaning you're always in complete control. And with an impressive tipping time of just 6 seconds up and 5 seconds down, you can maximize your productivity without waiting.


FUEL

With an impressive 20.6 gallon diesel capacity, the 707G is ready for long days of uninterrupted work. The fuel tank is cleverly integrated into the front chassis, giving you a more efficient and space-saving solution. So you can focus on your work without worrying about frequent refuelling stops.


BRAKES

Our brakes are a reliable force to be reckoned with! With a dual circuit hydraulic servo system and oil immersed brake discs on all 4 wheels, they're self-adjusting and maintenance-free. And when it comes to parking, we have a "Fail-safe" parking brake with electrohydraulic activation of the brake discs in the front axle - so your dump truck stays safe even when you're stationary.


OPERATORS CAB

Step into the comfort and safety of our spacious operators’ cab, which is ROPS/FOPS certified and gives you excellent visibility. You can choose between a mechanical or air suspended seat, and with an adjustable steering column and multi-joystick control, you'll have control at your fingertips. Plus, we'll make sure you’ll always stay cool with the standard A/C.

Dimensions

Tires   500/60-22,5 600/50-22,5 700/40-22,5
Engine power hp (kW) 75 (55) 75 (55) 75 (55)
SCR catal. with Ad-blue
Total weight lb 26,125 26,235 26,345
Unladen weight lb 11,795 11,905 12,015
Load capacity lb 14,330 14,330 14,330
Body capacity (heaped) yd3 4.6 4.6 4.6
Turning radius ft in 16’9” 16’9” 16’9”
Ground pressure (loaded) psi 0,672222 14 12
Track ft in 5’10” 5’10” 6’
Total width ft in 7’9” 7’10” 8’4”
Ground Clearence ft in 1’2” 1’2” 1’2”
Width, dumper body ft in 6’7” 6’7” 6’7”
Max height ft in 8’5” 8’5” 8’5”
Loading height ft in 6’2” 6’2” 6’2”
Height with raised body ft in 12’1” 12’1” 12’1”
Tipping clearance ft in 3’6” 3’6” 3’6”
Overhang, rear ft in 3’9” 3’9” 3’9”
Wheel base ft in 8’2” 8’2” 8’2”
Overall length ft in 17’4” 17’4” 17’4”
Departure angle, front ° 27 27 27
Departure angle, rear ° 69 69 69
Tipping angle ° 69 69 69
Overhang, front ft in 5’5” 5’5” 5’5”

Experience the Power and Efficiency of the Hydrema 707G Dump Truck

Step into the world of advantages with the Hydrema 707G, the supreme articulated 7-tonne dump truck engineered to simplify your work and amplify efficiency. This formidable vehicle presents a multitude of remarkable benefits.

With its low entrance to the operator's cab, you are afforded easy entry for augmented comfort. Beneath the hood, you'll discover a fuel-economical Cummins F3.8 Stage V engine that delivers potent performance while being kind to the environment, diminishing fuel expenditure and ecological impact.

The 707G's agility is attributed to its articulated chassis with center pivot point and hydraulic stabilizers, ensuring outstanding stability on any terrain. The operator's cab in the 707G provides unparalleled panoramic visibility, heightened safety, and comfort tailored for the driver.

Featuring the MultiTip function, material handling is a breeze, with the reduced loading height further easing the process. No matter if your work involves earthmoving, construction work, or other varied tasks, the 707G's advantages surpass the expected. Welcome to the forefront of articulated dump truck innovation.

It solves every task we have, big or small, under unreasonably tight conditions

Personalize Your Hydrema 707G

With Hydrema's 707G, you have a wide range of options to customize your 7-ton dump truck to perfectly suit your needs. First of all, you can customize the machine in terms of engine power. You have the choice between the two models, 707G and 707G Power+, where the difference lies in the power of the engine. If you've chosen the powerful Power+ model, it opens up more customization options such as MultiChassis and flatbed.

In addition, the tires on the dumper can be customized as needed. The standard tires on the 707G are in the dimensions 500/60-22.5. If you want extra traction and less ground pressure, you can choose optional wider tires such as 600/50-22.5 or 700/40-22.5. The great thing about the tire choice is that all options remain within the machine's width of 2.55 metres (8.3 ft). This means that the fully loaded 707G can be registered for driving on public roads, depending on regional rules and regulations.

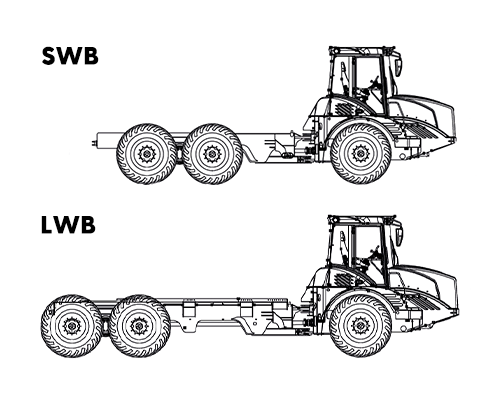

MultiChassis

With the Hydrema 707G you get a reliable 7-ton dump truck with a standard dump body that is equipped with the smart MultiTip system. This feature makes loading and unloading materials incredibly easy and efficient. At the same time, it allows you to unload the load backwards or to both sides, increasing your productivity on site and saving time.

There's also the option to add a trailer hitch to the 707G, further expanding the machine's range of applications. This allows you to tow extra equipment or material behind you, which can be crucial in different work situations.

If you need extra power and versatility, consider the more powerful 707G Power+ model. With this model, even more customization options open up. You can choose between MultiChassis or MultiChassis + Flatbed, giving you even more flexibility to fulfil your specific workplace needs. So whether you choose the standard 707G or the powerful 707G Power+, there are options to customize and optimize your machine to your requirements.

922G Swbandlwb Website

Hydrema Telematics

MAXIMIZED PERFORMANCE AND COST-EFFECTIVE MAINTENANCE

The Hydrema 707G comes equipped with the innovative Hydrema Telematics system that takes your machine to the next level of efficiency, maintenance and control. This advanced telematics system gives you instant access to important machine data and status reports to help you optimise performance and minimise downtime.

With Hydrema Telematics, you can monitor and analyse a wide range of machine information in real-time. From fuel consumption and engine performance to load weight and driving patterns, you have full control over your 707G. This enables you to identify inefficient operating patterns and take steps to improve them, which can lead to significant savings in fuel consumption and operating costs.

One of the most impressive features of Hydrema Telematics is its ability to predict maintenance needs. The system closely monitors all of the machine's vital components and alerts you to potential problems before they become serious. This allows you to schedule maintenance tasks well in advance, minimising unexpected downtime and extending the life of your machine.

Hydrema Telematics is not only a control system, but also an invaluable resource for Hydrema's service teams. This system allows technicians to remotely view your machine in real-time, identifying potential problems and scheduling maintenance tasks more efficiently. This reduces downtime and saves time and money. Furthermore, it enables the service team to check necessary spare parts in advance, eliminating unnecessary waiting time and ensuring faster problem resolution.

Hydrema Telematics also offers a remote control feature that allows you to track and control your 707G from any device with internet access. This is especially useful when the machine is located on a remote jobsite or in a hard-to-reach position. You can start, stop and lock your 707G remotely, increasing the safety and protection of your investment.

In summary, Hydrema Telematics gives you the intelligence and control you need to maximise the efficiency, reliability and longevity of your 707G. It is your reliable partner to optimise your work processes and minimise operating costs, making your investment in the Hydrema 707G even more valuable.

HYDREMA 707G: YOUR GO-TO DUMP TRUCK FOR EVERY TASK

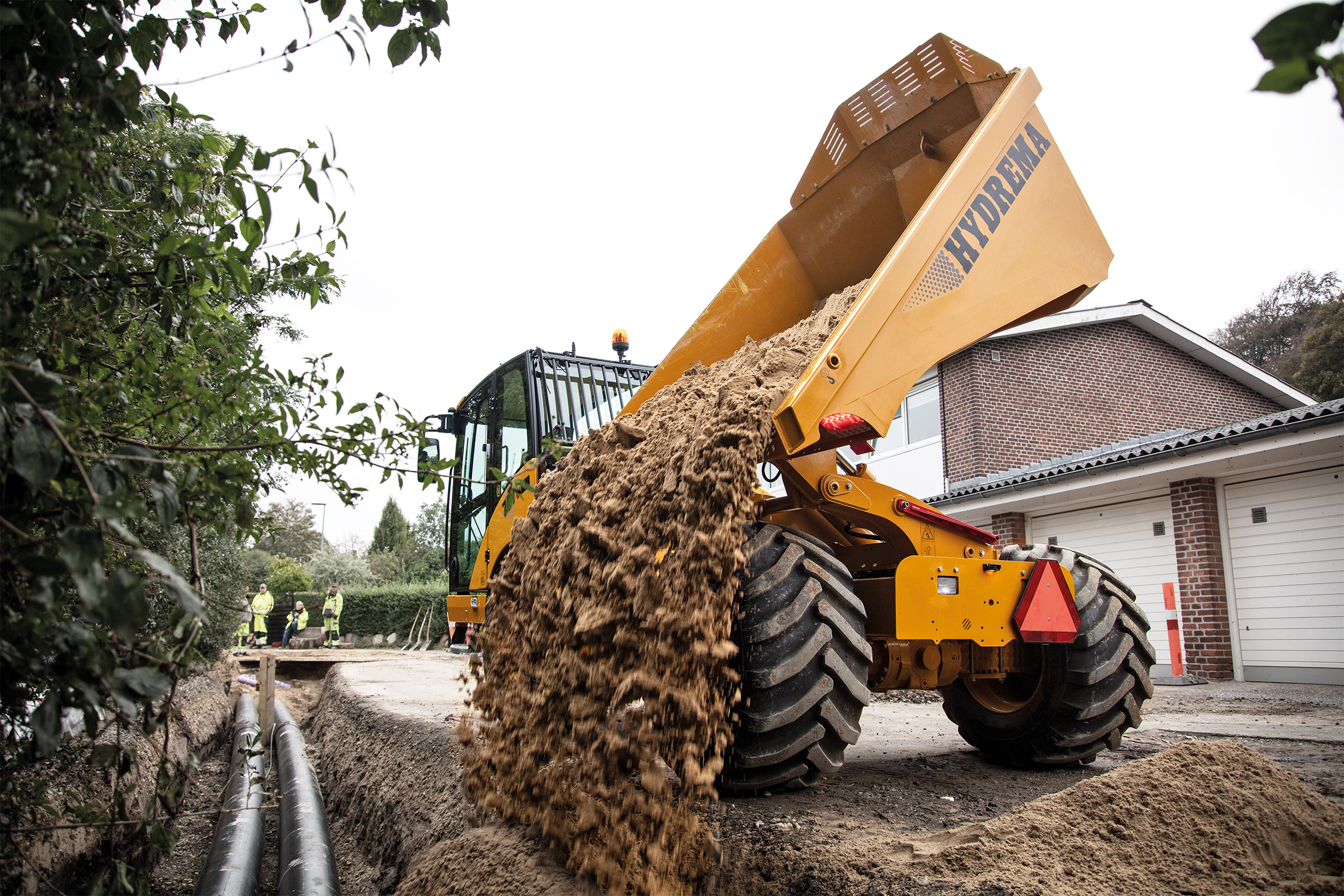

Multitip (2)

MultiTip

YOUR NEW SUPERPOWER WITH THE 707G

With our 707G models, you get the impressive 180° MultiTip function as standard. This isn't just an ordinary feature; it's your new superpower. MultiTip allows you to unload your cargo from every conceivable angle, which not only increases your flexibility, but also revolutionizes your approach to space utilization and efficiency.

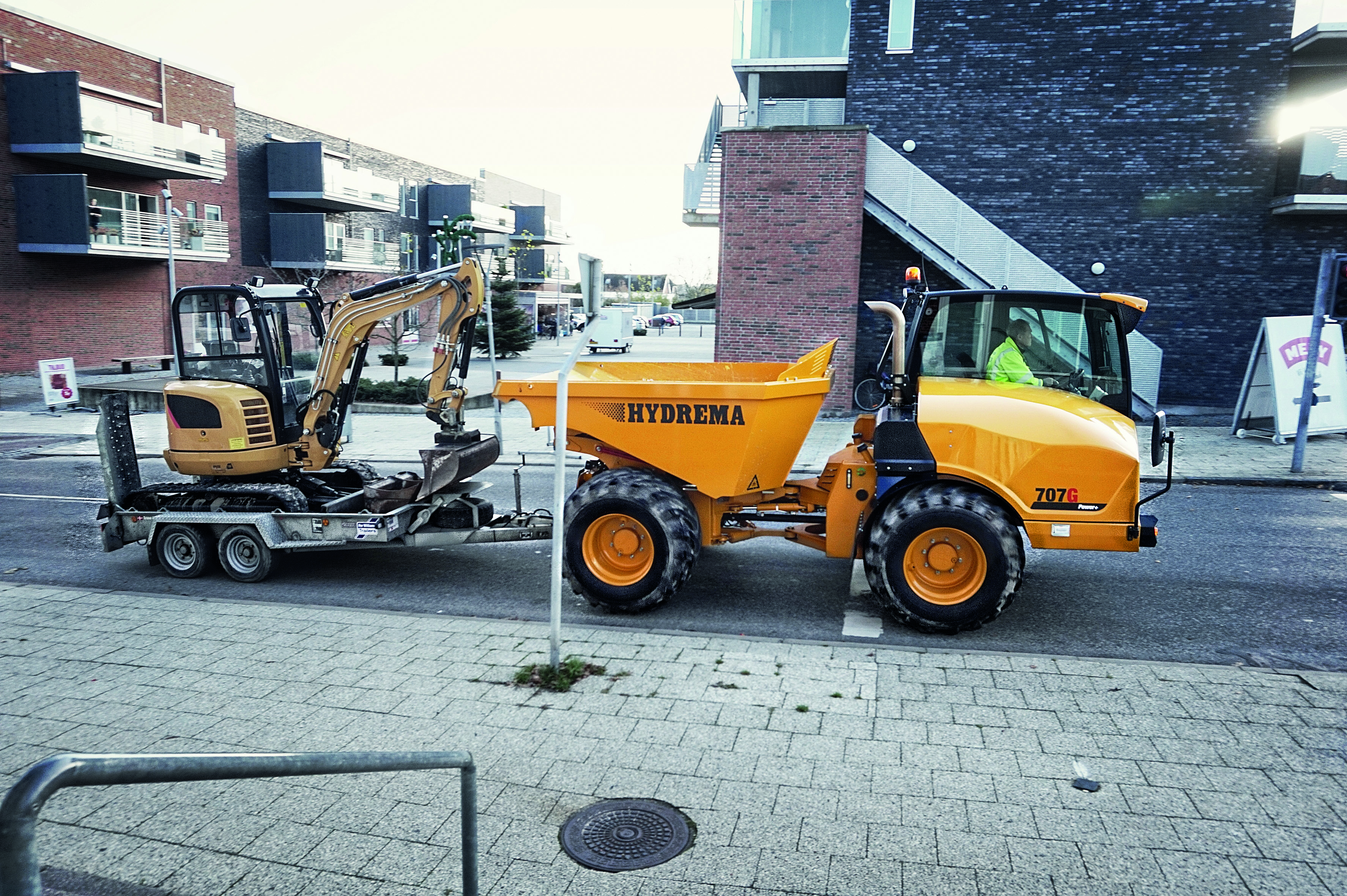

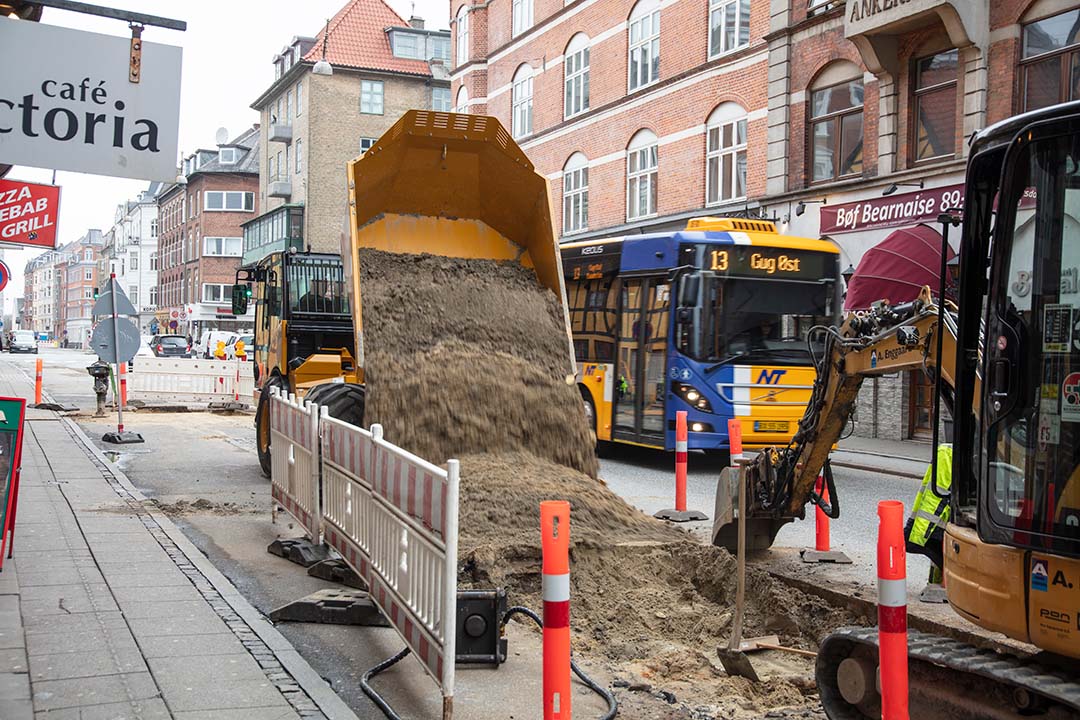

Citykit

CityKit

YOUR ULTIMATE PARTNER IN THE CITY'S CONFINED SPACES

The 707G is far more than just a dump truck; it's your ultimate partner for mini excavators. With a record low loading height of only 6’2” ft in, the 707G opens up a whole new world of possibilities in tight city spaces. Together with your mini excavator, they form our unique "CityKit," ready to take on any urban construction task.

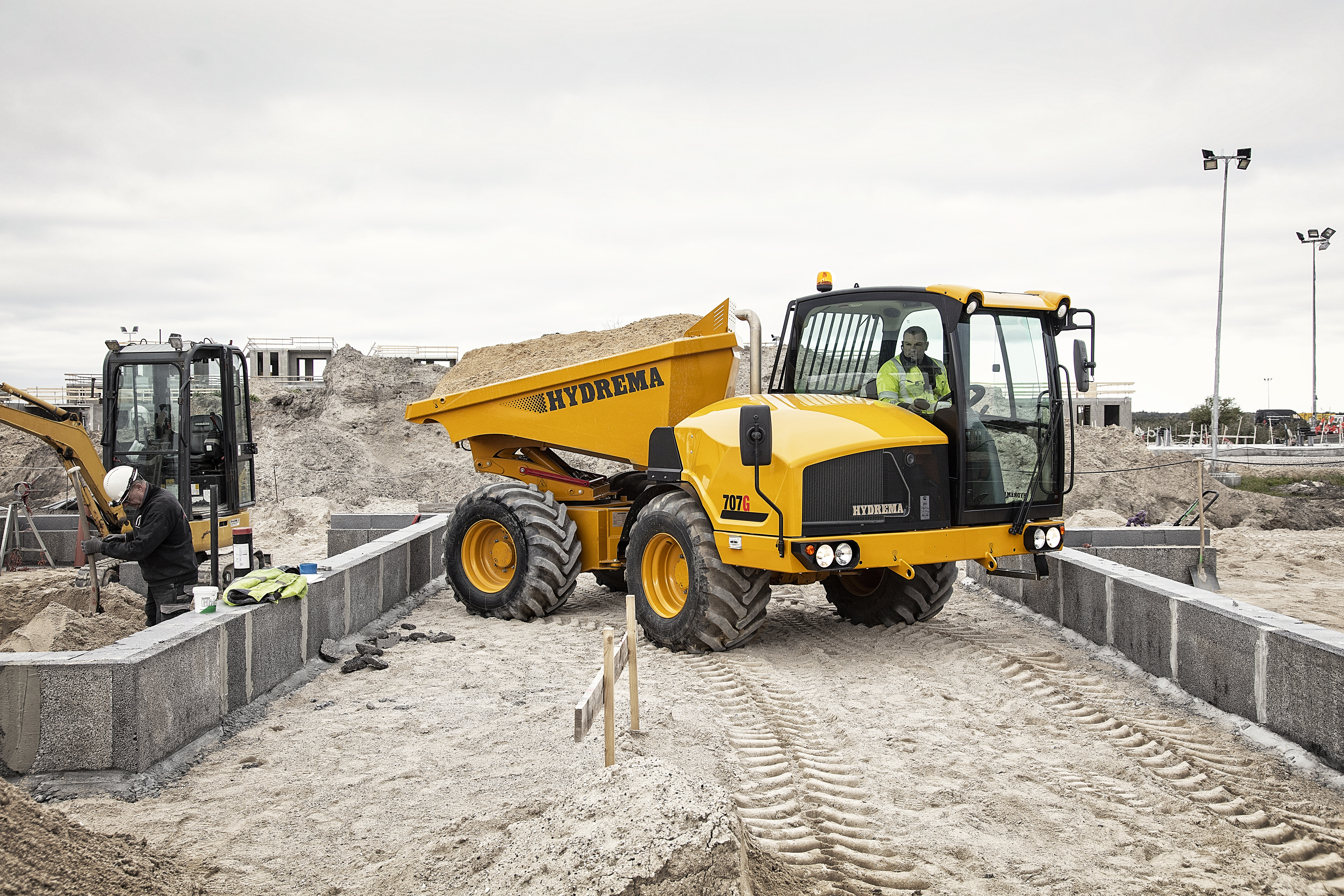

Turn Radius

COMPACT TURNING RADIUS

REVOLUTIONISE YOUR WORK WITH A COMPACT TURNING RADIUS

When you combine MultiTip with an exceptionally small turning radius, you get a machine created to solve challenging jobs in even the tightest of spaces. Meet the 707G, an iconic, versatile dumper that changes the rules of the game for your work, no matter how limited the space.

7 TON DUMPER: TOP-NOTCH QUALITY, BUILT TO LAST

SAFETY

TOTAL CONTROL WITH 707G

Safety is more than just a feature; it's a commitment. Our 707G dump truck leads the way in safety with its unique design and advanced technology. An unrivalled combination of an advanced optional rear view camera and a forward-facing operator's cab puts the driver in complete control. The result? A 360-degree view that not only impresses, but also fulfils the strict ISO 5006 & 14401 standards.

However, we take it one step further. Unlike conventional dump trucks, the 707G is designed so that the bed never blocks the operator's view. This isn't just about convenience, it's a revolution in how we think about efficiency and safety. The operator not only gets unrivalled visibility, but also the freedom to manoeuvre and work with unprecedented precision.

SAFETY IN VARIED TERRAIN

UNRIVALLED OPERATOR SAFETY

Deeply rooted in Hydrema's design ethos is an unbreakable devotion to safety. When designing a new machine, we focus not only on efficiency and performance, but also have a thorough understanding that operator safety is an absolute priority.

The smallest in our dump truck family embodies this philosophy in a unique way. With a simple one-step entry and a cabin that complies with the strictest ROPS/FOPS standards, we've created a work zone that represents the best in safe and comfortable working conditions.

EXPERTS IN DUMP TRUCK DESIGN

SUPERIOR STABILITY IN ANY TERRAIN

At Hydrema, stability isn't just a secondary factor; it's at the heart of every single one of our products. Our well-known chassis design, derived from our larger dumper models, has resulted in something truly extraordinary. The low centre of gravity combined with an articulated chassis with a central pivot point and dual hydraulic stabilisers guarantee the operator unparalleled stability.

But it doesn't end there. With a ground pressure as low as 12 psi and a remarkable turning radius of only 16’9” ft in, this dumper opens the door to unprecedented opportunities for efficient work, even in the most space-constrained areas.
